Retrofit CD changer in trunk - AN82.64-P-0001-04NA

Screw CD player with changer (in trunk) (A2/6) to CD changer (1) bracket with 4 screws (21) M4 x 6.

Fig 1: Identifying Bracket Screws And CD Changer

Shown on vehicle with TV tuner and sound amplifier
Insert D2B coupling (12) and black, 3-pin coupling (24) (voltage supply) into the CD player with changer (in trunk) (A2/6).
The branch-off line of the line with the black, 3-pin coupling (24) is tied back at the existing standard wiring harnesses (4) close to the left wheelhouse recess, or above the CD changer installation location at the side wall.

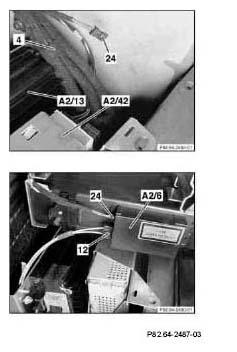

Fig 2: Identifying D2B Coupling And Black 3-Pin Coupling
Mount CD changer (1) bracket together with CD player with changer (in trunk) (A2/6) with nut (3) and M5 x 14 screws (2, 6) above the left wheelhouse recess (see figure).
In vehicles with TV tuner, the TV tuner bracket is also mounted at the left vehicle's longitudinal member with the M5x14 screws (2).

Ensure during installation that standard wiring harnesses (4) that are already installed at the wheelhouse recess are not damaged by the CD changer bracket.

Do not buckle or extend fiber optical cable, routing radii have to be larger than 25 mm!

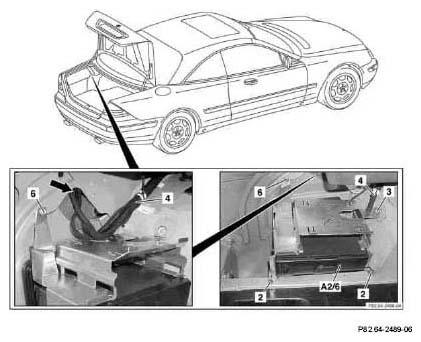

Fig 3: Identifying Standard Wiring Harnesses And Bracket Screw
