Retrofit CD changer in trunk - AN82.64-P-0001-04MO

Insert CD player with changer (in luggage compartment) (A2/6) in bracket (1) and tighten with 2 bolts M4 x 6 (21) each to right and left of bracket (1).
In vehicles with navigation processor the bracket (1) is already installed in the vehicle.

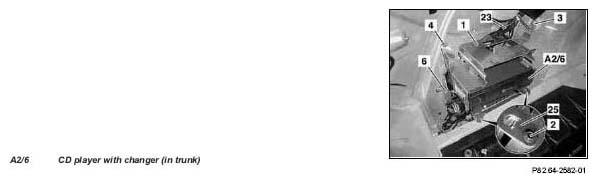

Fig 1: Identifying CD Changer In Luggage Compartment

Shown on vehicle with sound system (code 810)
Expose black, 3-pin coupling (24) (CD changer voltage supply) on standard wiring harness (23).
Black, 3-pin coupling (24) is tied back on the standard wiring harness (23) near the left wheelhouse recess or directly on the left wheelhouse with felt adhesive tape.
Route the standard wiring harness (23) as shown in the picture and fasten with a tie strap (25).
Ensure wiring harness is routed correctly and free of chafing points.

Do not buckle or extend fiber optical cable, routing radii must be greater than 25 mm!

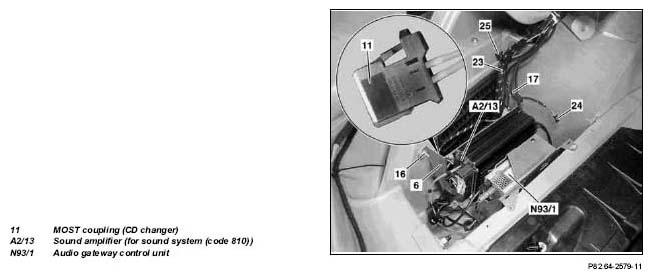

Fig 2: Identifying MOST Coupling, Sound Amplifier And Audio Gateway Control Unit
Insert MOST coupling (11) and black, 3-pin coupling (24) (voltage supply) into the CD player with changer (in luggage compartment) (A2/6).

Fig 3: Identifying MOST Coupling And Black 3-Pin Coupling
Mount bracket (1) for CD changer with a nut to threaded bolt (3) above bracket (6).
Screw in bolts (2) and (4).
Bracket (1) for CD changer is locked in bracket (6) with the locking tabs (25).

Do not buckle or extend fiber optical cable, routing radii must be greater than 25 mm! Do not damage standard wiring harness (23).

Fig 4: Identifying CD Player With Changer
