Retrofit optical waveguide wiring harness - AN82.70-P-0002-01MMA

  1. Prepare optical waveguide wiring harness (1) as shown in figure.

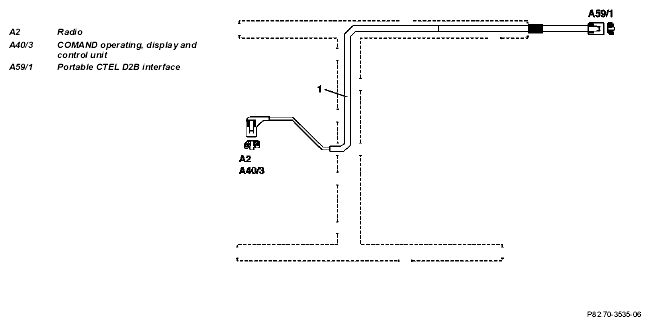

    Fig 1: Identifying Optical Waveguide Wiring Harness And Portable CTEL D2B Interface
    G04852600
  2. Route wiring harness (1) along existing leads in the vehicle as shown in figure.

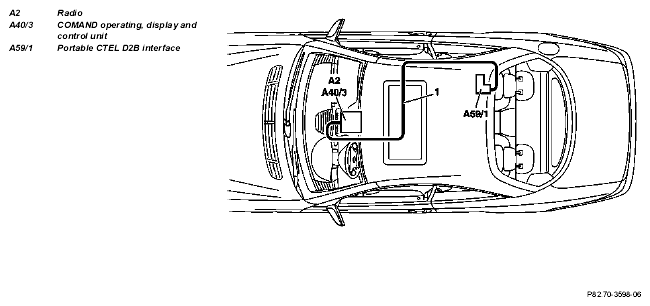

    Fig 2: Identifying Wiring Harness And Portable CTEL D2B Interface
    G04852601
  3. Route optical waveguide wiring harness (1) of portable CTEL D2B interface (A59/1) below the right rear seat in the right-hand cable duct to the front.
    Fig 3: Identifying Optical Waveguide Wiring Harness And Portable CTEL D2B Interface
    G04852602
  4. Route wiring harness (1) in cable duct below right front passenger seat to the radio recess.

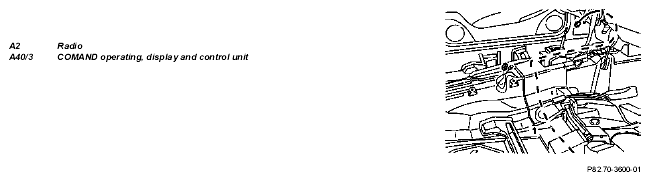

    Fig 4: Identifying Radio And COMAND Operating, Display And Control Unit
    G04852603
