Retrofit fiber optic wiring harness - AN82.70-P-0002-01ME

Fiber optical cable wiring harness routing plan

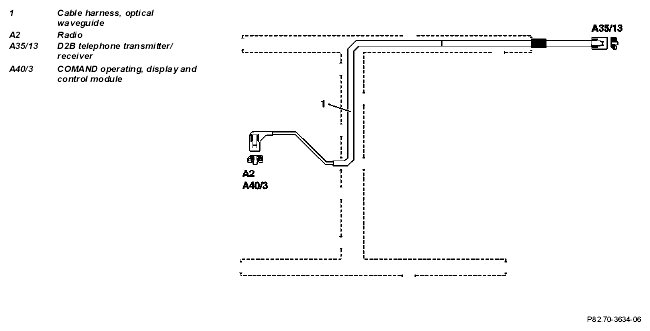

Fig 1: Identifying Optical Cable Wiring Harness Routing
G04852581

Fiber optical cable wiring harness connecting plan

  1. Route wiring harness (1) along existing cables into the right cable duct as shown in figure.

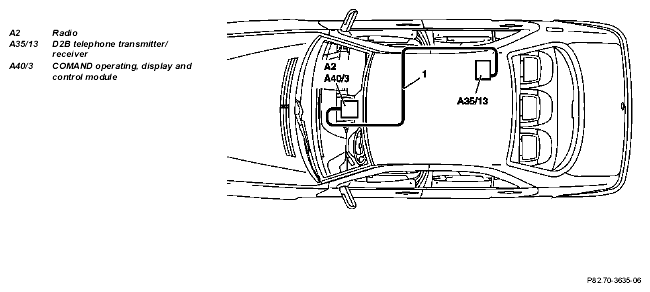

    Fig 2: Identifying Fiber Optical Cable Wiring Harness And D2B Telephone Transmitter/Receiver
    G04852582
  2. Route fiber optical cable wiring harness (1) of CTEL D2B transmitter/receiver unit (A35/13) below the right rear seat in the right-hand cable duct to radio recess.

    IMPORTANT Connections of fiber optical cable wiring harness (1) are attached to D2B telephone transmitter/receiver (A35/13), radio (A2) and COMAND operating and display system COMAND (A40/3) later.

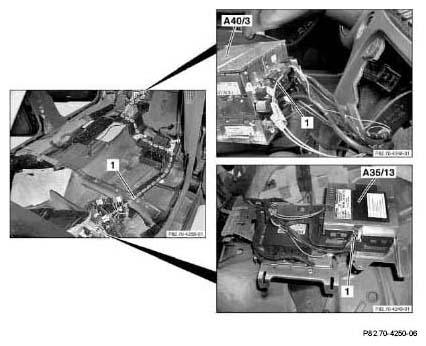

    Fig 3: Identifying Fiber Optical Cable Wiring Harness And CTEL D2B Transmitter/Receiver Unit
    G04852583
