Remove |
|
|
| 1 |
Remove headliner |
Cover rear window carefully to prevent damage to the foil of the rear window.
Headliner can remain in vehicle. |
AR68.30-P-4300MC |
| 2 |

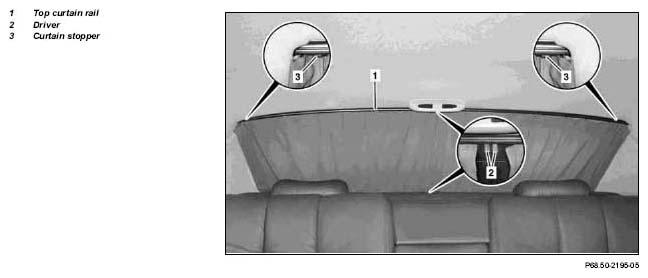

Remove curtains out of drivers (2) |
Identify installation position of curtains (wider side downward, pleats on inside).
Installation:
attach driver into the second tab of the curtains. Ensure that the curtains can be closed completely. |
|
| 3 |
Withdraw ignition key |
|
|
 |
Risk of injury
when carrying out test or repair work on airbag or seat belt tensioner units |
Store airbag unit with expulsion area on top, do not subject to temperatures above 100 °C. Interrupt power supply when working on such units |
AS91.00-Z-0001-01A |
| 4 |

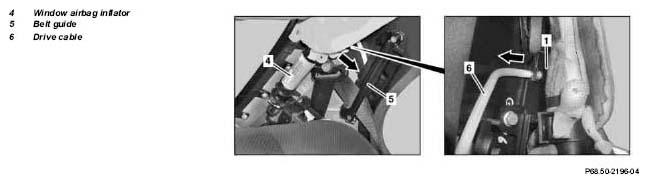

Detach inflator for window airbag (4) from the C-pillar |
Note spacer sleeve at upper attachment point. |
|
|
Important instructions for performing repair, body work and welding on vehicles with airbags and ETR units |
|
AH91.00-P-0002-01M |
| 5 |
Release attachment of belt guide (5) |
|
|
| 6 |
Remove curtain stopper (3) |
|
|
| 7 |
Pull curtains out of top curtain rail (1) |
|
|
| 8 |
Pull drive cable (6) on left and right out of the top curtain rail (1) |
|
|
| 9 |
Detach top curtain rail (1) from the roof reinforcement |
Secured using 6 bolts. |
|
 |
Install |
|
|
| 10 |
Insert drive cables (6) into the top curtain rail (1) |
|
|
| 11 |
Check length of drive cables (6) |
If protrusion is more than 2 mm.
↓ |
AR68.50-P-5605-01MB |
| |
|
Shorten cord of drive cable for rear window curtain |
AR68.50-P-5605-02MB |
 |
|
Centering aid for bore in drive cable |
WF58.50-P-6850-02MB |
| 12 |
Insert drive cables (6) to the stop in the top curtain rail (1) |
|
|
| 13 |
Attach top curtain rail (1) to the roof reinforcement |
Center top curtain rail. |
|
| 14 |
Slide curtains into top curtain rail (1) |
|
|
| 15 |
Bolt on attachment of belt guide (5) |
 |
*BA91.40-P-1010-01A |
| 16 |
Attach window airbag inflator (4) to the C-pillar |
|
*BA91.60-P-1005-01A |
| 17 |
Install headliner |
|
AR68.30-P-4300MC |
| 18 |
Install curtain stopper (3) |
Curtain must bear completely against C-pillar paneling. |
|
| 19 |
Attach curtains in the drivers (2) |
Use second tab of curtains, otherwise the curtain will not close completely. |
|
