Removing and installing wiper system - AR82.30-P-6400M: Notes

MODEL 220, 215

Illustrated on model 220

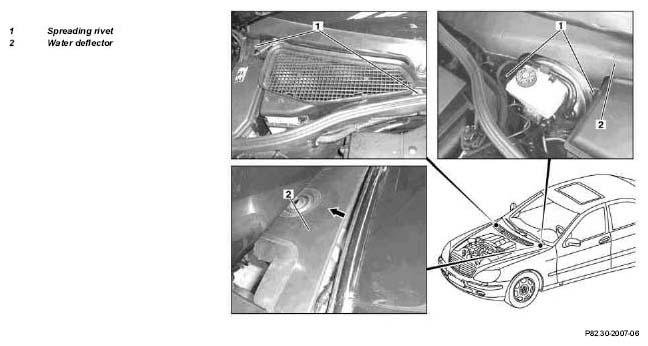

Fig 1: Identifying Spreading Rivet And Water Deflector

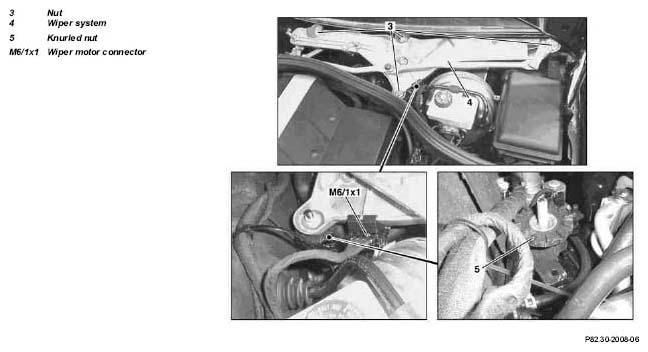

Fig 2: Identifying Wiper System, Knurled Nut And Wiper Motor Connector

	Removal
	Injury hazard!  Windshield wiper mechanism can pinch, crush or, in extreme cases, even sever extremities.	Always remove ignition key when working on windshield wiper mechanism.	AS82.30-Z-0001-01A
1	Remove wiper arms		AR82.30-P-6100M
2	Remove four spreading rivets (1)
3	Pull water deflector (2) upward out of channel (arrow)
4	Unscrew four nuts (3)	Do not turn knurled nut (5), otherwise inclination angle of wiper system will be changed
5	Disconnect connector (M6/1x1) from wiper motor
6	Remove wiper system (4)
	Installation
7	Position wiper system (4)
8	Screw in 4 nuts (3)		*BA82.30-P-1005-01A
9	Move wiper motor to park position		AR82.30-P-6800-01E
10	Install water deflector (2)
11	Install wiper arms		AR82.30-P-6100M
12	Check windshield wiper for proper function

WINDSHIELD WIPER

Number	Designation		Model 215	Model 220
BA82.30-P-1005-01A	Nut for wiper system	Nm	20	20
