Removing and installing wiper motor - AR82.30-P-6800M: Notes
MODEL 220, 215

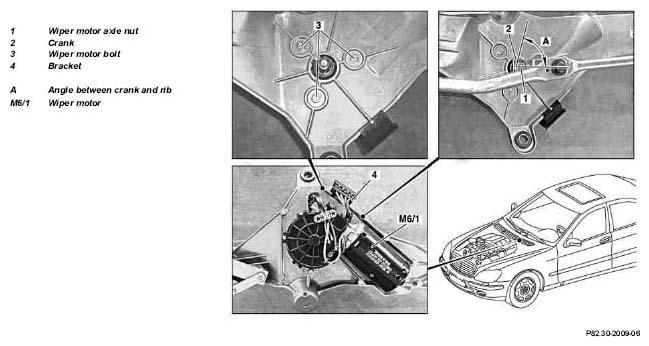

Shows model 220
| Remove | |||
| Injury Hazard! Windshield wiper mechanism can pinch, crush or, in extreme cases even sever extremities. | Always remove ignition key when working on windshield wiper mechanism. | AS82.30-Z-0001-01A | |
| 1 | Open engine hood and move to upright position | AR88.40-P-1000M | |
| 2 | Remove wiper system | AR82.30-P-6400M | |
| 3 | Unscrew nut of wiper motor shaft (1) | ||
| 4 | Pull off crank (2) with wiper linkage | ||
| 5 | Unclip plug (4) from fixture | ||
| 6 | Unscrew bolts (3) from wiper motor | ||
| 7 | Remove wiper motor (M6/1) | ||
| Install | |||
| 8 | Move wiper motor (M6/1) to parking position | AR82.30-P-6800-01E | |
| 9 | Insert wiper motor (M6/1) | ||
| 10 | Screw in wiper motor bolts (3) | *BA82.30-P-1001-01A | |
| 11 | Clip plug (4) into fixture | ||
| 12 | Align crank (2) at angle (A) to upper rib of wiper motor fixture | *BE82.30-P-1001-01C | |
| 13 | Screw nut onto wiper motor shaft (1) | *BA82.30-P-1002-01A | |
| 14 | Install wiper system | AR82.30-P-6400M | |
| 15 | Close engine hood | AR88.40-P-1000M | |
| 16 | Inspect operation of windshield wipers |
TEST AND ADJUSTMENT VALUES FOR WINDSHIELD WIPER
| Number | Designation | Models 215, 220 | ||
|---|---|---|---|---|
| BE82.30-P-1001-01C | Dim. | Angle "A" between crank and rib | ∠ | 74 |
| Fig. see | AR82.30-P-6800M | |||
| Number | Designation | Model 215 | Model 220 | |
|---|---|---|---|---|
| BA82.30-P-1001-01A | Bolt to wiper motor fixing. | Nm | 9 | 9 |
| BA82.30-P-1002-01A | Nut on wiper motor shaft | Nm | 19 | 19 |
