Remove/install rear axle level sensor - AR82.10-P-0005N
MODEL 215
MODEL 220 with CODE (487) Active Body Control (ABC)
| Remove/install | |||
| Replace self-locking nuts and bolts | |||

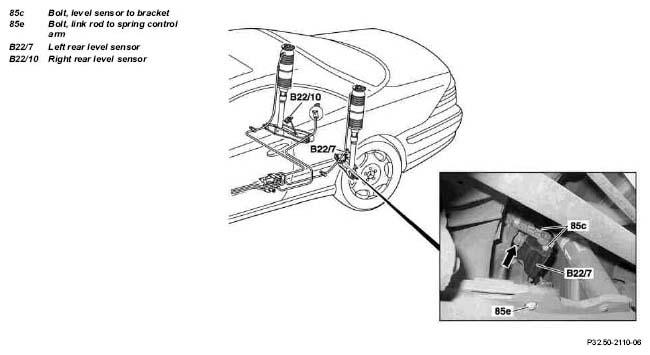

| 1 | Disconnect connector (arrow) on left, right rear level sensor (B22/7, B22/10) | ||
| 2 | Unscrew nut (85e) of link rod at left, right rear level sensor (B22/7, B22/10) | ||
| 3 | Unscrew bolts (85c) and remove level sensor | ||
| *BA82.10-P-1003-02A | |||
| 4 | Install in the reverse order | ||
| 5 | Calibrate vehicle level using Star Diagnosis (level calibration) after replacing level sensors |
| Number | Designation | Model 215 with code 487 | Model 220 with code 487 | |
|---|---|---|---|---|
| BA82.10-P-1003-02A | Bolt, level sensor to retaining plate | Nm | 4 | 4 |
