Removing and installing rear seat multicontour backrest control switch - AR91.25-P-1765M
MODELS 220.0 /1 with CODE (224c) Electrically adjustable rear single seats, with seat ventilation, seat heater and memory package

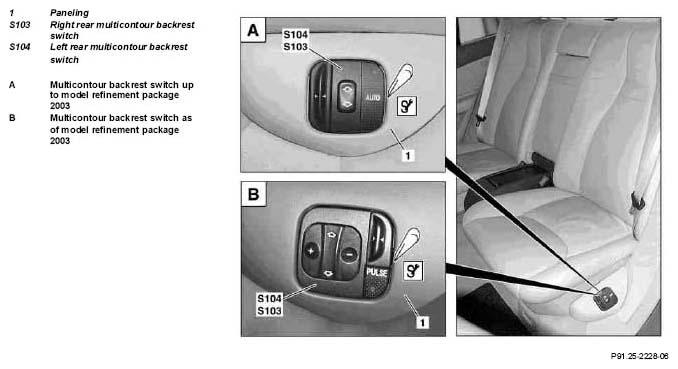

Fig 1: Identifying Rear Seat Multicontour Backrest Control Switch Remove/Install Components - Models 220.0 /1
| Remove/Install | |||
| 1 | Unclip rear right (S103), left (S104) multicontour backrest switch from paneling (1) with assembly wedge | Figure | |
| 2 | Disconnect electrical connector | ||
| 3 | Install in the reverse order | ||
| 4 | Perform multicontour backrest switch function check |
