Removing and installing rear seat multicontour backrest control module - AR91.25-P-1755M
MODELS 220.0 /1 with CODE (224c) Electrically adjustable rear single seats, with seat ventilation, seat heater and memory package

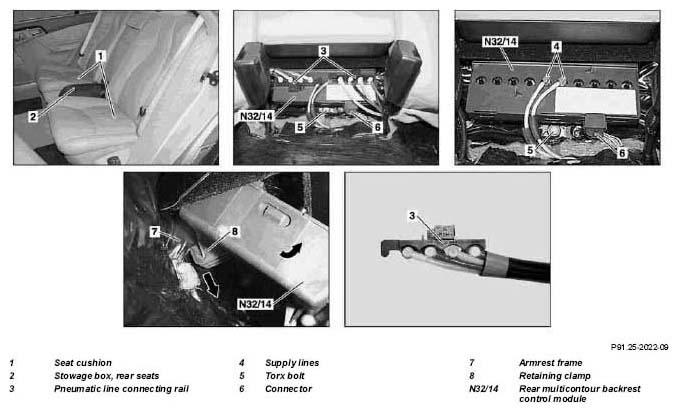

Fig 1: Identifying Rear Seat Multicontour Backrest Control Module Remove/Install Components - Models 220.0 /1
| Remove/Install | |||
| 1 | Remove stowage box (2) in rear seats | AR91.12-P-1760M | |
| 2 | Open catch and remove both pneumatic line connecting rails (3) from rear multicontour backrest control module (N32/14) | ||
| 3 | Detach supply lines (4) from rear multicontour backrest control module (N32/14) | ||
| 4 | Detach connector (6) from rear multicontour backrest control module (N32/14) | ||
| 5 | Unscrew Torx screw (5) | Figure bit set. | |
| 6 | Swivel rear multicontour backrest control module (N32/14) with front upwards and move retaining clamps (8) downwards out of armrest frame (7) at same time | ||
| 7 | Install in the reverse order | ||
| 8 | Perform multicontour backrest function check |
