Remove/install front power window switches - AR72.29-P-0100M

MODEL 220

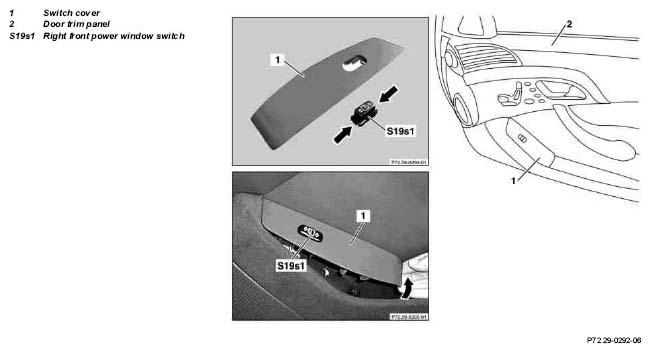

Fig 1: Identifying Front Power Window Switches Remove/Install Components

	Remove, Install
1	Unclip switch cover (1) with right front power window switch (S19s1) from door liner (2) on passenger door	For this purpose lift switch cover (1) at bottom edge (arrow) until switch cover (1) can be removed with right front power window switch (S19s1)
2	Disconnect right front power window switch connector from right front power window (S19s1)
3	Remove switch cover from right front power window switch (S19s1)	For this purpose press retaining lugs (arrows) for right front power window switch (S19s1) together with suitable tool until right front power window switch (S19s1) can be pressed out of switch cover toward inside.
4	Install in the reverse order
