Check door damper and locking eyes - AP72.00-P-7251M

MODEL 220.175 /176 /178 with CODE (Z04) Light armoring

MODEL 220.175 /176 /178 with CODE (Z07) Top protection

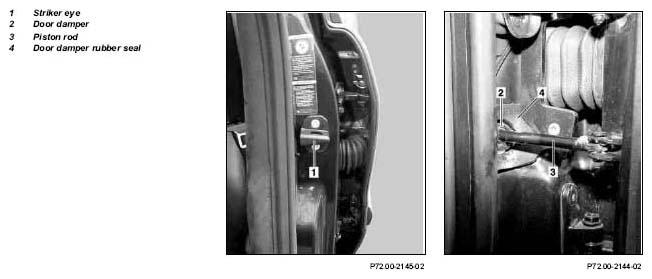

Fig 1: Identifying Door Damper Rubber Seal, Piston Rod And Striker Eye

	Check
1	Check locking eyes (1)	Ensure that the vehicle is clear of obstacles otherwise the body may be damaged when a door is opened. Open doors in sequence and check locking eyes (1) for damage and firm seating. Damaged locking eyes (1) must be replaced subject to separate repair order after consultation with the customer.
2	Check door damper (2) for proper operation	Ensure that the vehicle is clear of obstacles otherwise the body may be damaged when a door is opened. Open the doors 2 to 3 times in a controlled manner. Then open the door again, the damper function must start approx. in the last quarter of the opening travel. If no noticeable damper function starts, the door damper (2) must be replaced subject to a separate repair order, after consultation with the customer
3	Check door damper rubber seals (4)	Check door damper rubber seals (4) for cracks, porosity and tight seating. If defects are detectable the rubber seals must be replaced after consultation with the customer.
4	Lubricate piston rods (3)	Coat a light lubrication layer on the complete piston rods (3).
		Vaseline	*BR00.45-Z-1015-06A
