Retrofit fixed-installation telephone - AN82.70-P-0003M
MODEL 220 as of 1.7.00 up to 30.6.01 except CODE (855) TELE AID except CODE (819) 6-disk CD changer
MODEL 220 as of 1.7.00 up to 30.6.01 except CODE (855) TELE AID except CODE (810) Sound system except CODE (819) 6-disk CD changer

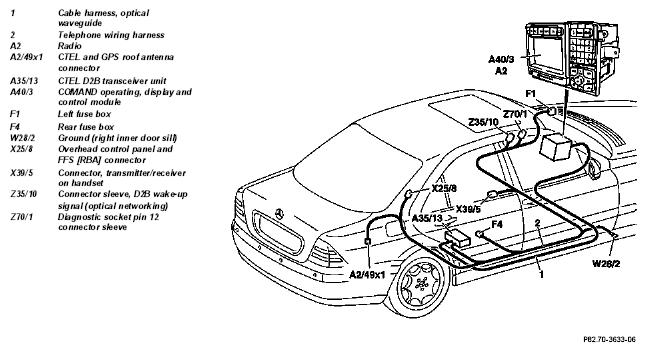

Fig 1: Identifying Fixed-Installation Telephone Components Location - Model 220 As Of 1.7.00 Up To 30.6.01
| Removal | |||
| 1 | Connect quiescent current retention device | *WH58.30-Z-1012-09A | |
| Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged leadacid batteries | No fire, sparks, naked flames or smoking. Wear acid-protective gloves, clothing and eye protection. Pour battery electrolyte only into suitable and appropriately marked containers. |
AS54.10-Z-0001-01A | |
| 2 | Disconnect ground cable of battery | ||
| AR54.10-P-0003I | |||
| Battery notes | All types. | AH54.10-P-0001-01A | |
| 3.1 | Remove radio | ||
| AR82.60-P-7502I | |||
| 3.2 | Remove/install operating, display and control module | with COMAND (code 352a) operating and display system | |
| AR82.85-P-7472I | |||
| 4 | Remove rear passenger compartment floor covering | ||
| AR68.20-P-4800M | |||
| 5.1 | Open right front and rear cable ducts | ||
| 5.2 | Open left front cable duct | ||
| 6 | Remove armrest with console | ||
| 7 | Remove left front and right seats | ||
| AR91.10-P-1000M | |||
| 8 | Remove and install SAM control module with fuse and relay box, left front | ||
| AR54.21-P-1260I | |||
| 9 | Remove rear seat and rear seat backrest | ||
| Remove rear seat backrest. | AR91.12-P-1620MA | ||
| Remove rear backrest with single seats (code 401). | AR91.12-P-1620M | ||
| 10 | Remove seat adjustment device | with single seats (code 401). | |
| AR91.10-P-1450M | |||
| 11 | Remove paneling on C-pillar | ||
| 12 | Separate equipment plate below right rear seat | ||
| 13 | Remove trunk lining on right-hand side | ||
| AR68.30-P-4600M | |||
| Install | |||
| 14 | Retrofit fiber optic wiring harness | AN82.70-P-0002-01MMM | |
| Cover optical waveguide | AR82.95-P-0005-01A | ||
| 15 | Retrofit telephone cable harness | AN82.70-P-0002-03MMM | |
| 16 | Install CTEL D2B transceiver unit | ||
| AR82.70-P-8911M | |||
| 17 | Retrofit CTEL/GPS antenna | AZ82.70-P-0001-08IA | |
| 18 | Install handset | ||
| AR82.70-P-8915M | |||
| 19 | Retrofit handsfree microphone | AN82.70-P-8969-04MA | |
| 20 | Fit remaining parts to vehicle | ||
| 21 | Perform startup and function check |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1012-09A | Quiescent current retention unit |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| Design Group 82 (see EPC) | Permanently installed CTEL control module | 1 |
| Design Group 82 (see EPC) | Screw for permanently installed CTEL control module | 2 |
| Design Group 82 (see EPC) | FFS wiring harness | 1 |
| Design Group 82 (see EPC) | D2B wiring harness | 1 |
| Design Group 82 (see EPC) | D2B clutch housing | 1 |
| Design Group 82 (see EPC) | CTEL handset | 1 |
| Design Group 82 (see EPC) | Mount (handset) | 1 |
| Design Group 82 (see EPC) | Mount (connector) | 1 |
| Design Group 82 (see EPC) | Adapter cable | 1 |
| Design Group 82 (see EPC) | Screw | 2 |
| Design Group 82 (see EPC) | Retainer plate in center armrest (only necessary for RHS, not required for LHS) | 1 |
| Design Group 69 (see EPC) | Microphone for handsfree system (only if necessary) | 1 |
| Design Group 69 (see EPC) | Mirror cover plate (only if necessary) (Color depending on interior equipment - 7D431A26AG691A36+equipment) | 1 |
| Design Group 82 (see EPC) | CTEL antenna assembly (only if necessary) | 1 |
| Design Group 82 (see EPC) | Adhesive pad (only if necessary) | 1 |
| A000 995 04 14 | Cable fastener (trunk) (only if necessary) | 1 |
| A009 997 53 81 | Grommet (only if necessary) | 1 |
| A006 989 39 71 | Bonding agent, 4299 Scotch-Mount glass primer (only if necessary) | 1 |
