Retrofitting taxi emergency call - AN82.71-P-1000M: Notes
MODEL 220 up to 30.6.00 with CODE (347) TELE AID emergency call system (D2B) with CODE (450) Tax version
MODEL 220 up to 30.6.00 with CODE (347) TELE AID emergency call system (D2B)
For retrofitted taxi specifications

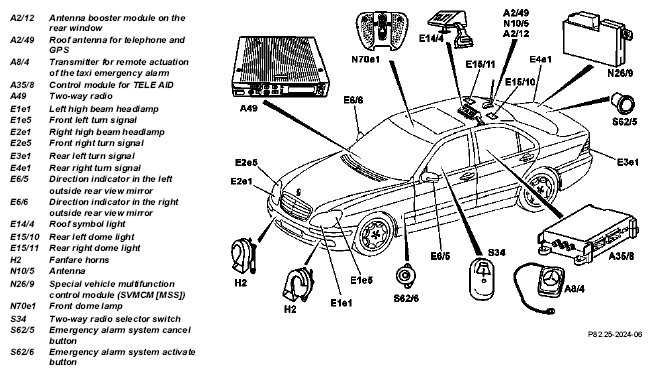

Location of components
| Removal | |||
| 1 | Disconnect ground cable of battery | ||
| AR54.10-P-0003I | |||
| 2 | Remove glove compartment | ||
| AR68.10-P-1400M | |||
| 3 | Remove front left and right entrance trim plates | ||
| 4 | Remove paneling in trunk on right | ||
| 5 | Remove rear seat | ||
| Remove, install rear seat cushion | MODEL 220 with CODE (401) separate seats. | AR91.12-P-1020M | |
| Remove, install rear seat cushion | MODEL 220. | AR91.12-P-1020MA | |
| Remove, install rear-seat backrest | MODEL 220. | AR91.12-P-1620M | |
| Remove, install rear-seat backrest | MODEL 220 with CODE (401) separate seats. | AR91.12-P-1620MA | |
| 6 | Remove right and left front seats | ||
| AR91.10-P-1000M | |||
| 7 | Open right and left wiring ducts | ||
| Installation | |||
| 8 | Retrofit telematics frame/floor wiring harness | AN82.71-P-1000-07M | |
| 9 | Retrofit telematics cockpit wiring harness | AN82.71-P-1000-08M | |
| 10 | Fit remaining parts to vehicle | ||
| 11 | Conduct start up of taxi functions | AN82.25-P-1000-05M |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| A220 820 25 15 | Telematics wiring harness, FFS | 1 |
| A220 820 54 15 | Telematics cockpit wiring harness (for connecting telematics to radio transmitter) | 1 |
