Retrofit TV tuner - AN82.60-P-0001A: Notes

MODEL 220 with CODE (352a) COMAND operating and display system with CODE (862) TV preequipment

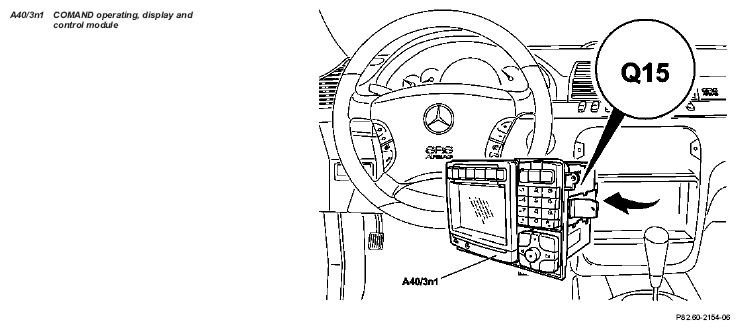

Fig 1: Identifying COMAND Operating, Display And Control Module

G04852443

	Removing
	Notes on COMAND software status	Model 220	AH82.60-P-0001-01A
1	Connect quiescent current retention unit		*WH58.30-Z-1012-09A
2	Disconnect ground cable of battery
			AR54.10-P-0003I
3	Remove side cover on left side of trunk	TV tuner should fit below side paneling, otherwise order new one.
4	Remove COMAND	A sticker is located on the right side of the unit with the designation of the software status "Q15 and higher are TV capable". On units with Q14 and lower update software to status Q15 with update CD. Units in vehicles as of 1.8.99 have the Q-status Q1 or Q2 and are always TV capable.
	Install
5	Retrofit TV tuner		AN82.60-P-0001-01A
6	Fit remaining parts to vehicle	4 - 1
7	Install software update for TV tuner	for control parts with Q14 and lower	AN82.60-P-0001-02B

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1012-09A	Quiescent current retention unit

PARTS ORDERING NOTES

Part no.	Designation	Quantity
Group 82 (see EPC)	Scope of delivery, TV receiver	1
