Retrofitting Linguatronic voice control system - AN82.70-P-0004CM: Notes

MODEL 220.### 1# up to 30.6.00 with CODE (316) MB GSM cellular telephone (D2B) with CODE (317) GSM portable cellular telephone (D2B) except CODE (347) TELE AID emergency call system (D2B)

MODEL 220.### 1# as of 1.7.00 up to 31.8.03 with CODE (852) CTEL preinstallation assembly at dome with CODE (853) MB standard cellular telephone with CODE (854) MB portable cellular telephone except CODE (855) TELE AID

A Version valid for MB D-network telephone (D2B) code (316)

B Version valid for D-network portable CTEL telephone (D2B) code (317)

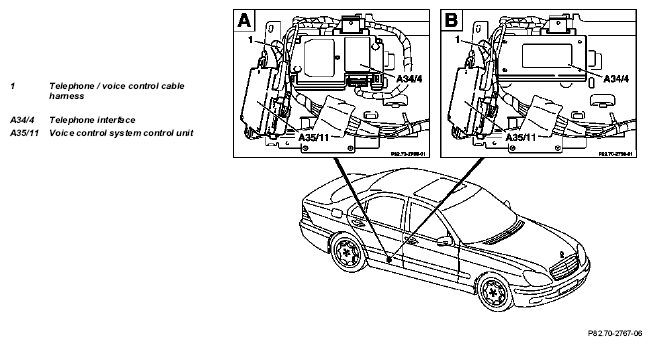

Fig 1: Identifying Linguatronic Voice Control System Components Location - Model 220.### 1# Up To 30.6.00

	Notes on Linguatronic voice control system	Model 220 up to 30.6.00 with code (316) MB D-network telephone (D2B) with code (317) D-network portable CTEL telephone (D2B) except code (347) TELE AID emergency call system (D2B)	AH82.70-P-0001-06CM
	Notes on fiber optic		AH82.70-P-0001-02A
	Remove
1	Disconnect battery ground line
			AR54.10-P-0003I
2	Remove rear seat cushion
		Models 220.0 /1 except code (223) Electrically adjustable rear bench seat except code (224) Electrically adjustable individual rear seats, with seat ventilation, heated seats, and memory package	AR91.12-P-1020MA
		Model 220.0 /1 with code (223) Electrically adjustable rear bench seat	AR91.12-P-1020M
3.1	Remove instrument cluster	Only on vehicles with version below 6/03.
			AR54.30-P-6015I
	Install
4	Retrofit Linguatronic voice control system wiring harness		AN82.70-P-0004-01CM
5	Retrofit fiber optic wiring harness		AN82.70-P-0002-01CM
6	Retrofit Linguatronic voice control system control unit		AN82.70-P-0004-04CM
7	Install remaining parts onto vehicle	Steps 3.1 up to 1.
8	Read out actual/nominal configuration with STAR DIAGNOSIS and reconfigure D2B components and enable instrument cluster
9	Perform function check	See operating instructions, telephone with voice control system
