Retrofit Linguatronic voice control system - AN82.70-P-0004CN: Notes

MODEL 215.### 1# up to 30.6.00 with CODE (316) MB GSM cellular telephone (D2B) with CODE (317) GSM portable cellular telephone (D2B) except CODE (347) TELE AID emergency call system (D2B)

MODEL 215.### 1# as of 1.7.00 up to 31.8.02 with CODE (852) CTEL preinstallation assembly at dome with CODE (853) MB standard cellular telephone with CODE (854) MB portable cellular telephone except CODE (855) TELE AID

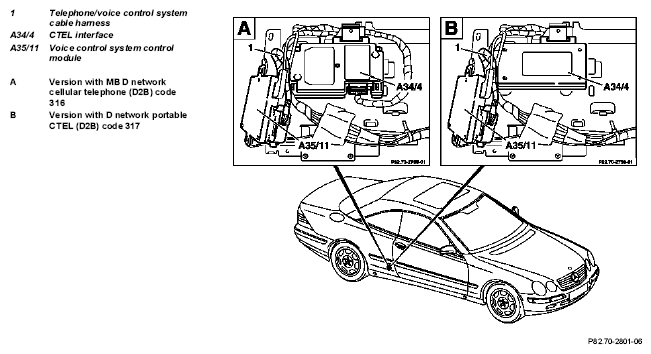

Fig 1: Identifying Linguatronic Voice Control System Components Location - Model 215.### 1# Up To 30.6.00

	Notes on fiber optic cable	Model 215 with CODE (316) MB D network cellular telephone (D2B). Model 215 with CODE (317) D network portable CTEL (D2B).	AH82.70-P-0001-02A
	Remove
1	Disconnect battery ground line
			AR54.10-P-0003I
2	Remove rear seat cushion
			AR91.12-P-1020N
3	Fold back sound-insulating mat under the right rear seat cushion and remove control unit support plate under the rear seat	Do not disconnect electrical connectors.
4	Remove jacket tube module	The steering column module is a disposable part. Installation:  install new steering column module with Linguatronic.
			AR54.25-P-2802I
	Install
5	Retrofit Linguatronic voice control system wiring harness		AN82.70-P-0004-01CN
6	Retrofit fiber optic cable wiring harness		AN82.70-P-0002-01CN
7	Retrofit Linguatronic voice control system control module		AN82.70-P-0004-04CN
8	Fit remaining parts to vehicle	Steps 4 to 1
9	Read out actual/nominal configuration with STAR DIAGNOSIS and reconfigure D2B components and enable instrument cluster
10	Check for proper function	See operating instructions, telephone with voice control system.
11	Supplement special equipment on the vehicle data card and in the vehicle data card online	Voice Control system (VCS) code 813.
