Retrofitting CD changer - AN82.64-P-0001NO: Notes

MODELS 215.375 /376 1# as of 1.9.03

vehicles with MOST fiber optical cable

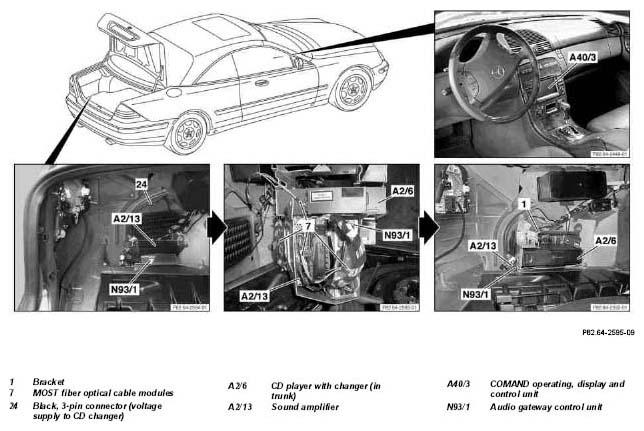

Fig 1: Identifying CD Changer Components (Shown On Vehicle With Sound System (Code 810))

Shown on vehicle with sound system (Code 810)

	Remove
	Risk of explosion  caused by explosive gas. Risk of poisoning and caustic burns  caused by swallowing battery electrolyte. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear protective gloves, acid-resistant clothing and safety glasses. Pour battery electrolyte only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
1	Disconnect battery ground line
			AR54.10-P-0003I
	Notes on battery	All models	AH54.10-P-0001-01A
	Notes on AGM battery	Model 215 as of 1.1.01.	AH54.10-P-0002-01A
2	Remove the audio gateway control unit (N93/1)	Do not detach electrical couplings. Do not remove the audio gateway control unit (N93/1) from the bracket. If a side wall covering without access flap for the CD changer has been installed, this must be replaced with one with an access flap.
			AR82.60-P-7606M
	Install
3	Extend fiber optical cable ring for components to be retrofitted	Risk of breakage!  Do not kink optical waveguide, route over sharp edges or bend in radii smaller than 25 mm. Tensile forces on inserts must not exceed 65 N. Do not squeeze fiber optical cable and do not compress with clamps or tie straps.	AN82.64-P-0001-05NO
4	Install audio gateway control unit (N93/1)
			AR82.60-P-7606M
5	Retrofit CD changer in trunk		AN82.64-P-0001-04NO
6	Perform startup with STAR DIAGNOSIS.	Perform nominal/actual configuration.
7	Perform function check	See owner's manual.
8	Fit remaining parts to vehicle	If a side wall paneling without access flap for the CD changer has been installed, this must be replaced with one with an access flap.
9	Add special equipment to the vehicle data card and to the online vehicle data card	CD changer for 6 CDs (code 819)
