Retrofit navigation system - AN82.85-P-0002M

MODELS 220.025 /028 /063 /067 /070 /075 /083 /084 /087 /125 /128 /167 /170 /175 /176 /183 /184 /187 1# as of 1.9.03

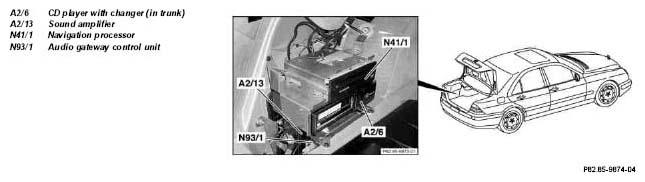

Fig 1: Identifying Navigation System Components Location

	Remove
	Risk of explosion  caused by explosive gas. Risk of poisoning and caustic burns  caused by swallowing battery electrolyte. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear protective gloves, acid-resistant clothing and safety glasses. Pour battery electrolyte only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
1	Disconnect battery ground line	Do not connect quiescent current retention device.
			AR54.10-P-0003I
	Notes on battery	All models	AH54.10-P-0001-01A
	Notes on AGM battery	Model 220.028 with CODE (450) Taxi version. Models 220.070/075/175 as of 1.1.01	AH54.10-P-0002-01A
2.1	Remove operating lever for mechanically pivotable trailer hitch	Vehicles with code (550) trailer hitch.
			AR31.11-P-8010M
3	Remove coverings in trunk	Left side paneling. If a side wall paneling without access flap for the navigation processor has been installed, this must be replaced with a new one having an access flap.
			AR68.30-P-4600M
4	Remove audio gateway control unit	Do not disconnect electrical lines and do not remove control units from the brackets.
			AR82.60-P-7606M
	Install
5	Extend fiber optical cable ring for components to be retrofitted	Risk of breakage!  Do not kink optical waveguide, route over sharp edges or bend in radii smaller than 25 mm. Tensile forces on inserts must not exceed 65 N. Do not squeeze fiber optical cable and do not compress with clamps or tie straps.	AN82.64-P-0001-05MA
6	Install audio gateway control unit
			AR82.60-P-7606M
7	Retrofitting navigation processor in trunk		AN82.85-P-0001-01MA
8	Fit remaining parts to vehicle	Steps 3 up to 1
9	Perform startup with STAR DIAGNOSIS.	Perform specified/actual configuration and enable navigation special equipment in the instrument cluster.
10	Perform function check	See owner's manual.
11	Add special equipment to the vehicle data card and to the online vehicle data card	COMAND APS USA (with navigation) code 527a
