Retrofitting portable CTEL - AN82.70-P-0002MC: Notes
MODEL 220 as of 1.7.00 up to 31.8.03 except CODE (852) CTEL preinstallation assembly at dome except CODE (855) TELE AID with CODE (819) 6-disc CD changer
MODEL 220 as of 1.7.00 up to 31.8.03 except CODE (852) CTEL preinstallation assembly at dome except CODE (855) TELE AID except CODE (810) Sound system with CODE (819) 6-disc CD changer
| Remove | |||
| Notes on telephone retrofitting | Model 215, 220 as of 1.7.00 up to 30.6.01. | AH82.70-P-0001-04C | |
| 1 | Remove floor covering in rear passenger compartment | ||
| AR68.20-P-4800M | |||
| 2.1 | Remove radio | ||
| AR82.60-P-7502I | |||
| 2.2 | Remove/install operating, display and control unit | with COMAND (code 352a) operating and display system | |
| AR82.85-P-7472I | |||
| 3 | Connect no load current retention unit | *WH58.30-Z-1012-09A | |
| Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Pour battery acid only into suitable and appropriately marked containers. |
AS54.10-Z-0001-01A | |
| 4 | Disconnect battery ground cable | ||
| AR54.10-P-0003I | |||
| Notes on battery | All models | AH54.10-P-0001-01A | |
| 5 | Open left and right wiring ducts | ||
| 6 | Remove armrest with console | ||
| 7 | Remove rear seat backrest | ||
| AR91.12-P-1620MA | |||
| with single seats (code 401). | AR91.12-P-1620M | ||
| 8.1 | Remove seat adjustment device on rear seat | with single seats (code 401). | |
| AR91.12-P-1520M | |||
| 9 | Remove rear shelf | ||
| AR68.30-P-4580M | |||
| 10 | Remove left and right-hand trunk lining | ||
| AR68.30-P-4600M | |||
| Install | |||

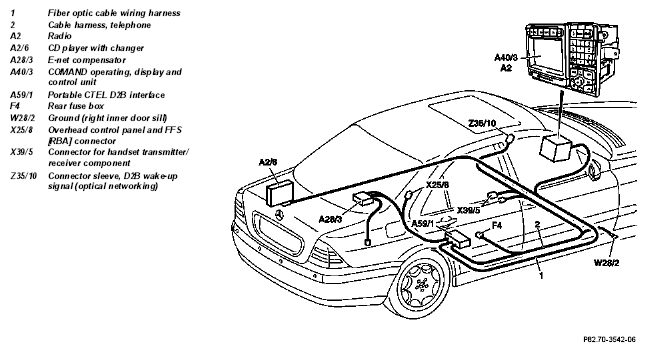

| 11 | Install fiber optical cable module | ||
| AR82.70-P-0004-01A | |||
| 12 | Retrofit fiber optic wiring harness | AN82.70-P-0002-01MC | |
| 13 | Retrofit telephone cable harness | up to 30.6.01. | AN82.70-P-0002-03MAA |
| 14 | Retrofit interface | ||
| AR82.70-P-8920I | |||
| 15.1 | Retrofit telephone/GPS antenna | AZ82.70-P-0001-08IA | |
| 16 | Retrofit bracket for Nokia 6150 portable CTEL (telephone) | Models 220.026/ 028/ 063/ 065/ 070/ 073/ 075 | AN82.70-P-0002-05MM |
| 17 | Retrofit E-net compensator onto parcel shelf | ||
| AR82.70-P-0010AE | |||
| 18.1 | Retrofit hands-free system microphone | AN82.70-P-8969-04MA | |
| 19 | Install remaining parts onto vehicle | ||
| 20 | Carry out start-up and function test | ||
| 21 | Add special equipment to the vehicle data card and to the online vehicle data card |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1012-09A | Quiescent current retention unit |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| KG82 (see EPC) | RF cable in center armrest | 1 |
| A220 820 13 35 | Microphone for hands-free system (only if necessary) | 1 |
| KG69 (see EPC) | Mirror cover plate (Color depends on interior equipment specification - 7D431A26AG691A36+equipment) (only if necessary) | 1 |
| KG82 (see EPC) | CTEL antenna assembly (only if necessary) | 1 |
| KG82 (see EPC) | D2B interface (control unit) | 1 |
| A001 990 21 36 | PT screw for D2B interface (control unit) 4x16 mm | 2 |
| KG82 (see EPC) | FFS wiring harness | 1 |
| KG82 (see EPC) | Compensator (antenna amplifier) | 1 |
| N913 017 004 000 | Nut M4 | 2 |
| KG82 (see EPC) | Bracket for compensator, duplexer, receiver | 1 |
| N914 128 004 200 | Sheet-metal screw for upper bracket to body | 1 |
| A203 820 01 51 | Nokia 6150 portable CTEL | 1 |
| A215 821 00 64 | Strain relief | 1 |
| KG82 (see EPC) | Bracket for Nokia 6150 portable CTEL | 1 |
| N000 000 001 933 | Screws for portable CTEL mounting, 4x8 mm | 1 |
| KG82 (see EPC) | Cap | 2 |
| KG82 (see EPC) | Fiber optical cable module (order with length of 5605 mm) | 1 |
| A000 545 07 28 | D2B clutch housing | 1 |
| KG82 (see EPC) | Retainer plate in center armrest | 1 |
| KG82 (see EPC) | Bow | 1 |
| A000 995 04 14 | Cable retainer | 1 |
| A009 997 53 81 | Grommet | 1 |
| KG82 (see EPC) | Adhesive pad | 1 |
| A006 989 39 71 | 4299 Scotch-Mount glass primer bonding agent |
