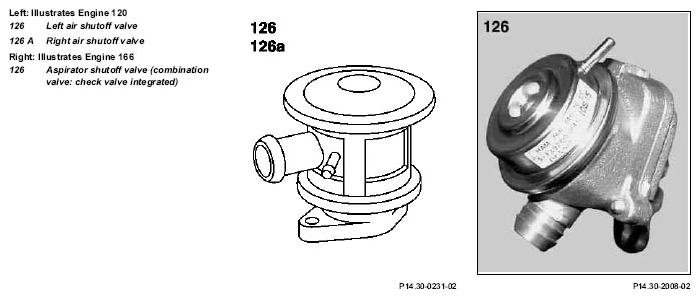

Air shutoff valve, location/task/function - GF14.30-P-4028F
ENGINE 104.941 /942 /943 /944 /991 /994 as of 1.8.96
ENGINE 104.941/942 /991 /992 /994 with CODE (494a) USA version
ENGINE 104.995
with CODE (494a) USA version
with CODE (498) as of Model year 1997
Japanese version with CODE (807) Model year 1997 with CODE
(808) Model Year 98
ENGINE 111.961 with CODE (494a) USA version
ENGINE 111.973/975
with CODE (494a) USA version
with CODE (923a) low emission D3
ENGINE 111.974
with CODE (494a) USA version
with CODE (807) Model year 1997
with CODE (808) Model year 1998
ENGINE 111.951 /952 /955 /956 /957 /958 /982 /983
ENGINE 112,113 (except 112.96,113.99) as of 1.6.00, 112.910 /911 /912 /914 /920 /921 /922 /923 /940 /941 /942 /943 /944 /946 /947, 113.940 /941 /942 /943 /960 /961 /963 /965
with CODE (494a) USA version
with CODE (925) low emission EURO3
with CODE (926) low emission EURO4
ENGINE 119.980/981/982/985
with CODE (494a) USA version
with CODE (920a) with exhaust air pump (secondary air injection) with CODE (923a) low emission D3
as of 12/96
ENGINE 120.982/983
ENGINE 137.970
ENGINE 166.940 in MODEL 168.031 /131 with CODE (925) low emission EURO3
ENGINE 166.960 in MODEL 168.031 /033 /133 with CODE (925) low emission EURO3/D4
ENGINE 166.990 in MODEL 168.032 /132 with CODE (925) low emission EURO3/D4
ENGINE 166.995 in MODEL 168.035 /135 with CODE (925) low emission EURO3/D4
| Air shutoff valve position | Engine 111 with air injection | GF14.30-P-4028-01G | |
| Engine 104 with air injection | GF14.30-P-4028-01D | ||
| Engine 112, 113 | GF14.30-P-4028-01A | ||
| EURO3/4 and |
|||
| Engine 137 | GF14.30-P-4028-01L | ||
| Engine 166 EURO3/D4 | GF14.30-P-4028-01GC | ||
| Engine 111 EVO (naturally aspirated engine) | GF14.30-P-4028-01GR | ||
| Engine 111 EVO (supercharger) | GF14.30-P-4028-01GS | ||
| Air shutoff valve task | When air pump is switched off, preventing air being inducted into the exhaust ports, as a result of the flow of the exhaust gases. | ||
| Air shutoff valve function | GF14.30-P-4028-02F |
