Removal & Installation

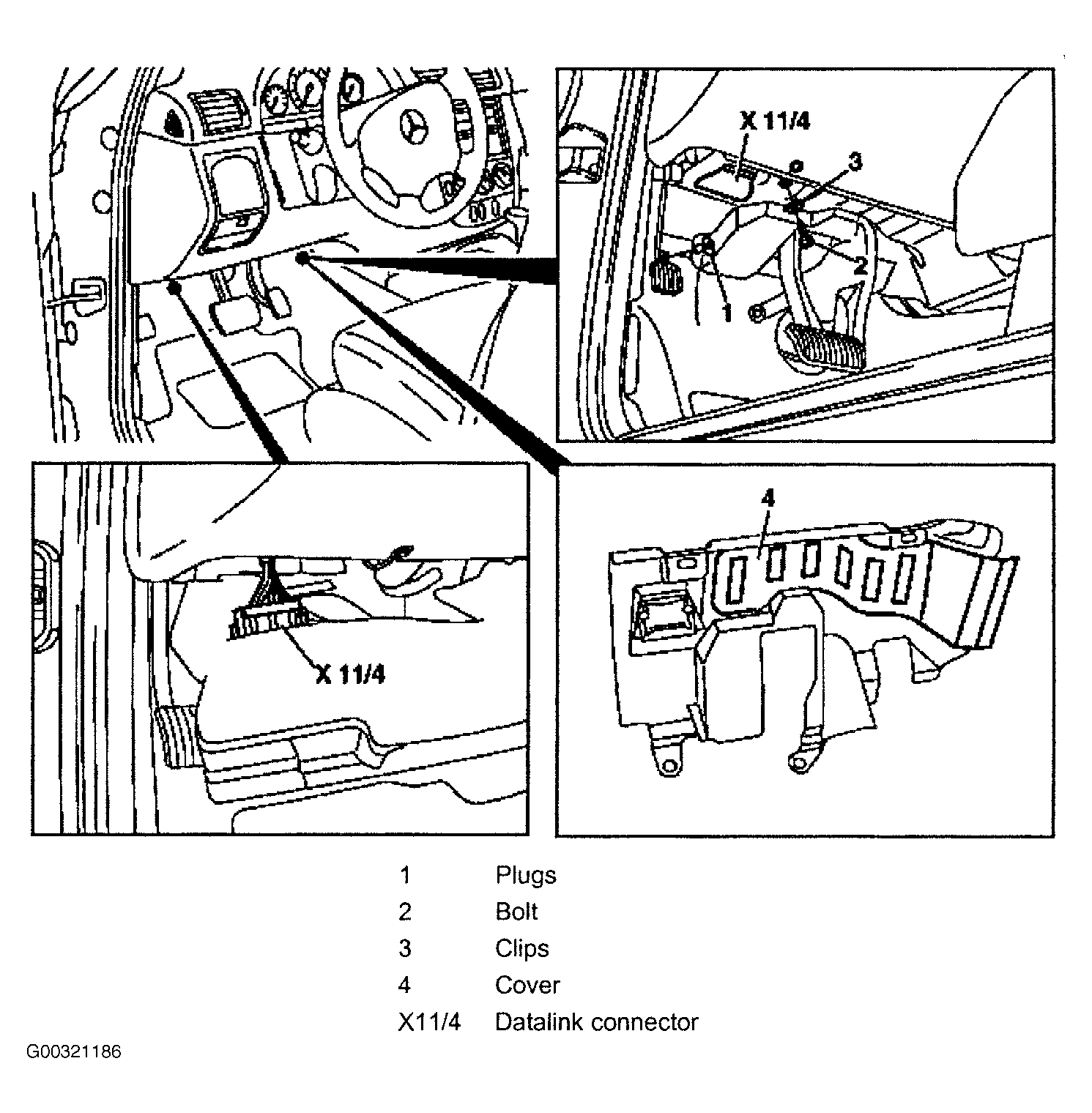

- Remove plugs (1), 2 each. See Fig 1 .
- Remove screws (2), 2 each.
- Remove data link connector (X11/4) from cover (4).
- Remove cover.
- Installation is the reverse of removal. When installing screws observe that clips (3) are properly placed.
