Traction systems hydraulic unit location/function/design/operation - GF42.50-P-4000D
MODEL 163 as of 1.9.02 with CODE (472a) Electronic Stability Program (ESP)
MODEL 170 with ENGINES 111,112 with CODE (472a) Electronic Stability Program (ESP)
MODEL 202 with ENGINES 111, 605, 611 with CODE (472a) Electronic Stability Program (ESP)
MODEL 208 with ENGINE 111 with CODE (472a) Electronic Stability Program (ESP)
MODEL 203, 209 with CODE (472a) Electronic Stability Program (ESP)

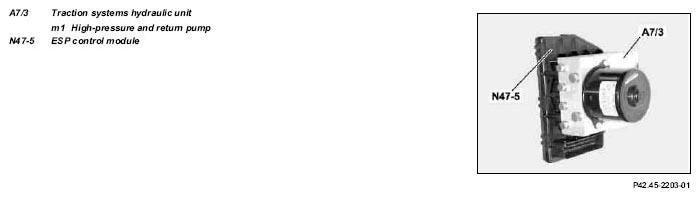

| Traction systems hydraulic unit Location | Model Series 163 | GF42.50-P-4000-02M | |
| Models 170, 202, 203, 208, 209 | GF42.50-P-4000-02A | ||
| Traction systems hydraulic unit Purpose | The traction systems hydraulic unit (A7/3) governs the closed-loop control processes employed to regulate the vehicle's dynamic response. | ||
| Traction systems hydraulic unit Body | GF42.50-P-4000-03D | ||
| Traction systems hydraulic unit Function | GF42.50-P-4000-04D |
