Function of ETS control module - GF42.35-P-4500-01C

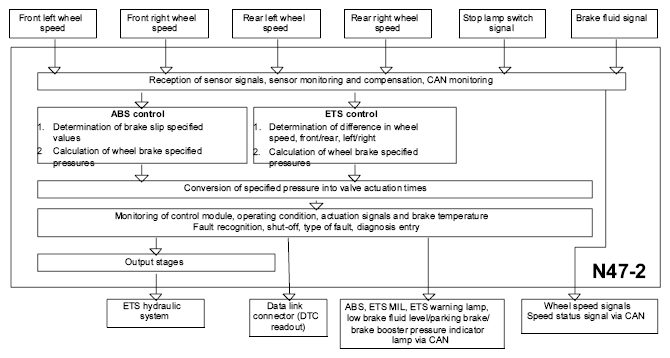

The ETS control module is divided up functionally as follows:

• Signal processing
• Logic section
• Safety circuit
• Additional functions
• Signal processing

  The following input signals are processed for the logic section:

  • 4 speed sensors
  • Stop lamp switch
  • Brake fluid level switch
  • CAN data from ME-SFI, ETS, KIN, transfer case
• Logic section

The processed input signals are conditioned in the logic section and converted into output signals.

The logic section is divided up functionally as follows:

• ETS control mode (road/off-road mode)
• ABS control mode (road/off-road mode)
• Electronic brake booster pressure
• Temperature monitoring

ETS control mode

The control mode is introduced for each individual wheel from the vehicle reference speed and the ETS slip recognition.

ETS slip recognition introduces the control mode if slip at one or several wheels is established in comparison to vehicle reference speed.

Speed range:

0-60 km/h

If the engagement condition is retained when accelerating in the road gear above 60 km/h, the control mode is continued up to a maximum of 80 km/h.

Off-road control logic

The inter-wheel and inter-axle lock condition offers the maximum traction when driving in the off-road gear in difficult terrain at a crawling speed. As starting off or driving in the locked condition is not possible due to the design principle, this condition is simulated as closely as possible by reducing the specified slip requirement and influencing the pressure build-up. This control operation only works when the off-road gear is engaged up to 20km/h.

Starting off control logic with manual transmission in road gear (low range not engaged)

A starting off logic is integrated in the ETS control module to prevent the engine stalling due to brake intervention when starting off.

Depending on the vehicle speed a mean minimum drive speed (= theoretical minimum engine speed) is specified which depends on the current ETS brake control pressure.

If the mean drive speed drops below the specified mean minimum drive speed, the pressure in the brake caliper is reduced.

This control characteristic is varied between 5 and 30 km/h on vehicles with manual transmission, depending on the brake control pressure, mean drive speed and vehicle speed.

Temperature monitoring

Due to the double load of the brake and ETS control there is the risk of brake overheating with misuse. For this reason the brake lining temperature is calculated continuously in the control module for each wheel individually and when a calculated lining temperature is reached at the respective brake no further ETS control is permitted until the temperature has dropped again to a set value. If ETS control is prevented by temperature monitoring, the ETS MIL comes on for as long as the ETS control would be effective, but for at least 7 seconds. The excessive temperature is also recorded in the fault memory.

Temperature calculation

Brake lining temperature is calculated separately for each wheel. It is determined without a temperature sensor.

The following inputs are evaluated to calculate brake lining temperature:

• Vehicle speed
• Brake operation
• Calculated brake pressure from ETS control logic

Afterrun mode after "ignition off"

This operating mode ensures the voltage supply of the ETS control module even after "ignition off". As a result the brake lining temperatures continue to be calculated and cannot be reset by "ignition off/ignition on". The temperature calculation is continued after the ignition is switched off until a calculated temperature of 70° is reached, but for 30 minutes at the most. The voltage supply to the ETS control module is then switched off.

Safety circuit

The task of the safety circuit is to recognize defective components in the control module and faults in the electric cable system. After "ignition on" and exceeding a speed of 7 km/h for the first time system tests are carried out which recognize faults in the solenoid valves, the high-pressure/return pump and speed sensors. In addition constant monitoring is also carried out during an ABS or ETS control operation. If a fault is recognized, the system is switched off and this is displayed to the driver by the ETS or ABS MIL (A1e35 or A1e17) coming on. A fault code is also stored in the control module. The safety circuit also constantly monitors battery voltage. When the voltage drops below 10.5 V the system is also switched off until the voltage is in the specified range again.

Additional functions

Wheel speed and speed status signal outputs

• Wheel speed output: For systems which require a wheel speed signal the ETS control module supplies the current wheel speed of each wheel.
• Speed status signal output: For systems which require information on the current vehicle status (vehicle stationary, vehicle driving, speed sensor defective), the ETS control module supplies the speed status signal.

Malfunction indicator lamp actuation

The signals from the brake pad wear contacts, from the brake fluid level switch and the parking brake are registered. They are passed on to the instrument cluster via the CAN data bus together with the signals for the ABS and ETS MIL, the ETS warning lamp, brake pad wear indicator and low brake fluid level/parking brake/brake booster pressure indicator lamps.
