BAS pressure reduction function - GF42.31-P-3200A
MODELS 129,140 as of 1.12.96, 210 as of 1.2.97, 170, 202 as of 1.6.97, 168 up to 28.2.01, 163, 203, 208, 209, 215, 220
BAS pressure reduction
The BAS release switch (s1) is switched passively. Solenoid valve (y1) is switched off and only creates sufficient brake pressure to correspond to the position of the brake pedal.

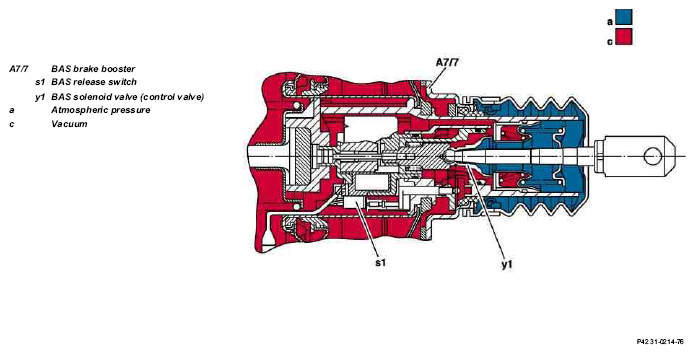

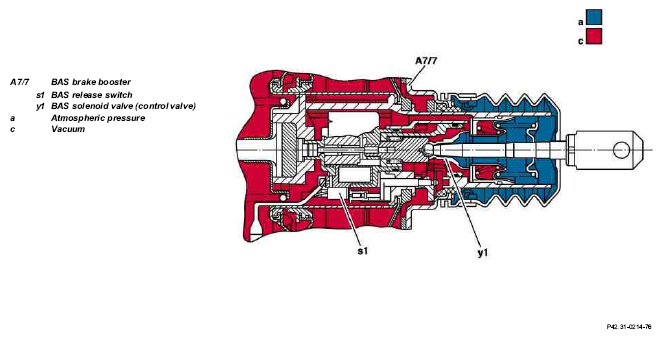

Illustration: release position
