Floor Covering

Remove floor covering as necessary to access parking brake control cable. See Fig 1 .

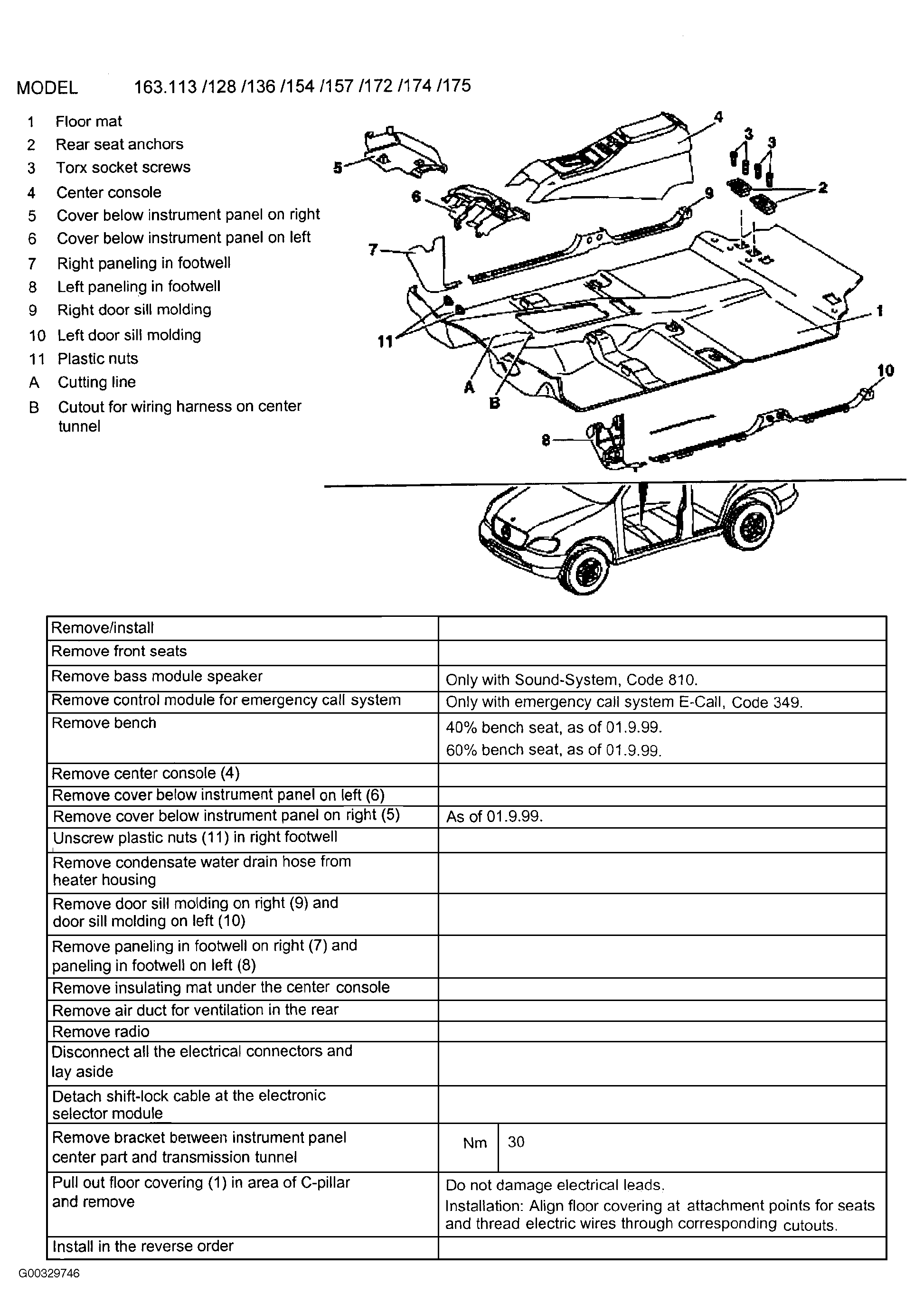

Fig 1: Removing & Installing Floor Covering

G00329746

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
