Brake Caliper (Front & Rear Floating): Assembly

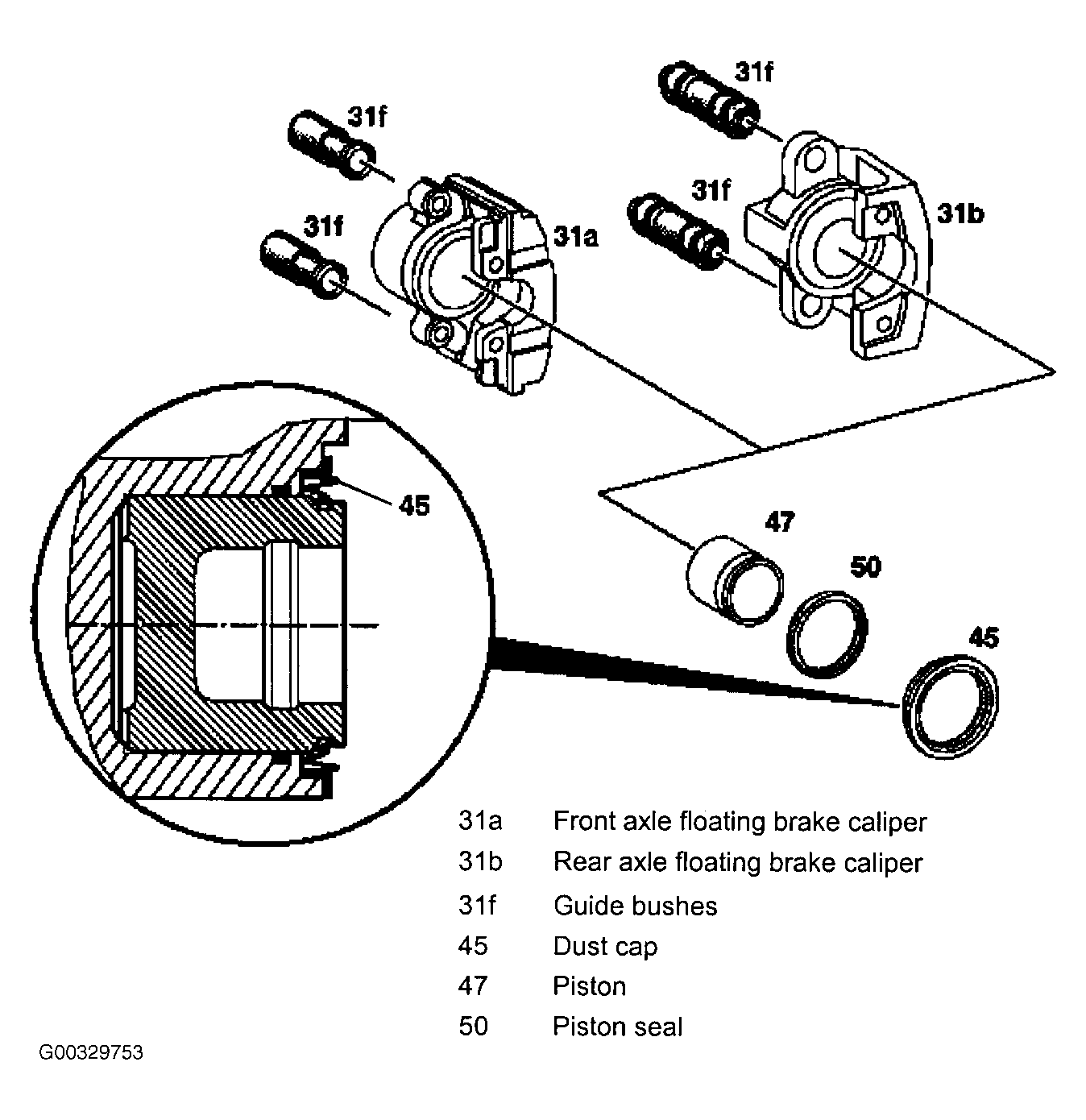

Assemble in reverse order of disassemble procedure. Put dust cap over piston and insert into cylinder bore together with piston. See Figure . Push in piston using both hands. Ensure correct seating. Install new guide bushes (31f). Install floating caliper.
