Check and correct power steering fluid level - AP46.00-P-4611G

MODEL 460, 461, 463 with P/S

Figure shows model 460

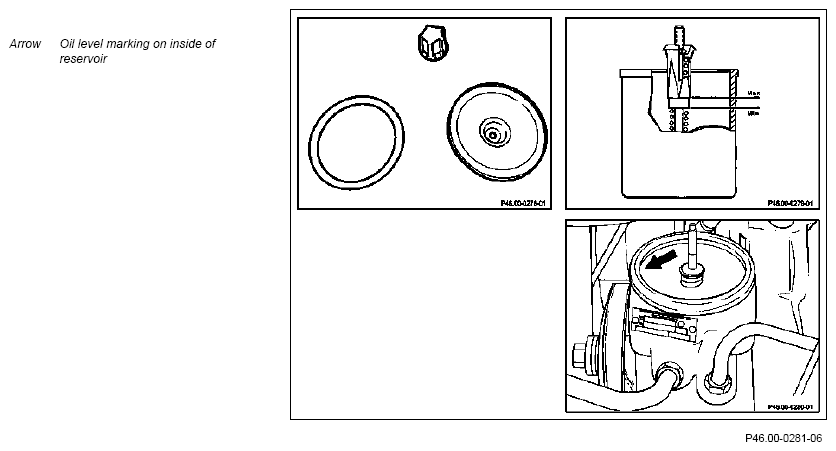

Fig 1: Locating Oil Level Mark On Inside Of Reservoir

Courtesy of MERCEDES-BENZ USA

Shown on model 461 with engine 612

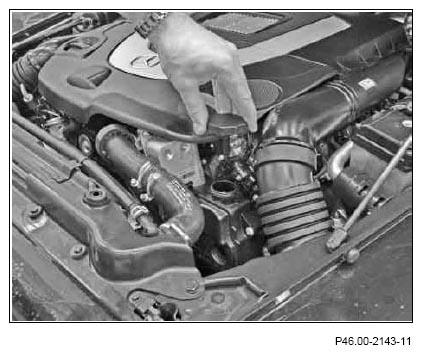

Fig 2: Identifying Oil Level Mark On Dipstick (Model 461 With Engine 612)

Courtesy of MERCEDES-BENZ USA

Shown on model 463 with engine 112

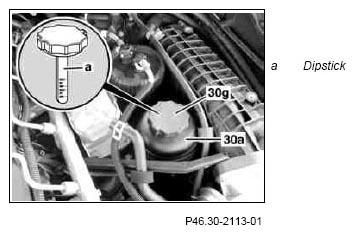

Fig 3: Identifying Oil Level Mark On Dipstick (Model 463 With Engine 112)

Courtesy of MERCEDES-BENZ USA

Shown on model 463 with engine 628

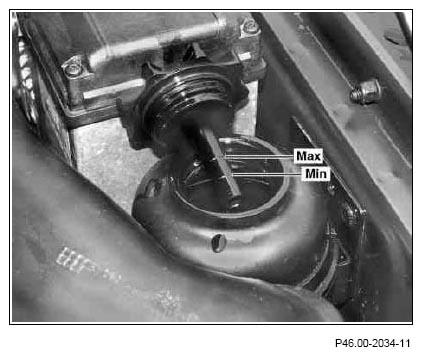

Fig 4: Identifying Oil Level Mark On Dipstick (Model 463 With Engine 628)

Courtesy of MERCEDES-BENZ USA

Shown on model 461 with engine 642

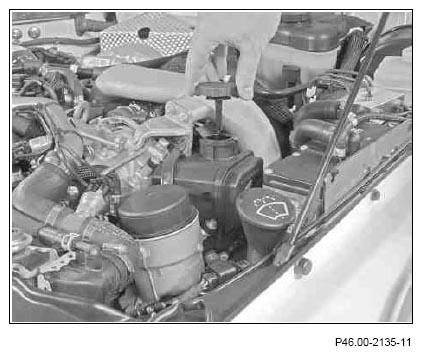

Fig 5: Checking Power Steering Fluid Level (Model 461 With Engine 642)

Courtesy of MERCEDES-BENZ USA

Shown on model 463 with engine 273

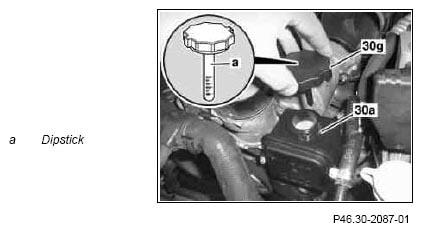

Fig 6: Checking Power Steering Fluid Level (Model 463 With Engine 273)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury  to skin or eyes caused by hydraulic fluid spraying out under high pressure. Risk of poisoning  caused by swallowing hydraulic fluid	Depressurize the hydraulic system completely before starting any work on the system. Wear protective clothing and safety glasses.	AS00.00-Z-0013-01A
1.1	Remove cylinder head cover trim	Engine 612
	Remove/install cylinder head cover trim	Model 461.331 with engine 612.966	AR01.20-P-5014-02GLC
			*BA01.20-P-1002-01A
			*BA01.20-P-1003-01A
		Model 463.322 /323 with engine 612.965	AR01.20-P-5014-02B
			*BA01.20-P-1002-01A
		Model 461.302 /332 /342 /345, Model 461.331 with engine 612.695 /963	*BA01.20-P-1003-01A
1.2	Remove engine trim panel	Model 463.303/ 340/ 341	AR01.10-P-2405GY
	Clean
2	Thoroughly clean cap of expansion reservoir and surrounding area	Even minute particles of dirt, introduced into the hydraulic components, can result in malfunctions and damage to the power steering.
		Cleaner from package	*BR00.45-Z-1028-04A
3	Detach cap from expansion reservoir
	Checking
4	Check seal of cap; replace if necessary
5	Check oil level and correct if necessary	In the case of expansion reservoirs with oil level marking on the vent protection tube or dipstick in the cap, the oil must be between the "MIN" and "MAX" markings when the vehicle is at operating temperature. When the oil is cold, the oil level must not fall below the "MIN" marking. In the case of expansion reservoirs with oil level marking on the inside of the reservoir (arrow), the oil must be approximately level with the marking when the vehicle is at operating temperature. When the oil is cold, the oil level must be 6 mm to 8 mm below this marking.
	Specified gear oils (cars, cross-country vehicles) - survey		BB00.40-P-0231-01A
6	Checking power steering for leaks	If oil level is too low. Determine and rectify the cause of the leak against a separate repair order.
7	Install in the reverse order
