Remove/install ventilation screens - AR83.10-P-0011GX
MODEL 463.222 /237 /243 /244 /245 /246 /247 /249 /270 /271 /322 /323 /332 /333 /336 /340 /341 /346
MODEL 463.236 /248 except CODE (979) Special protection version

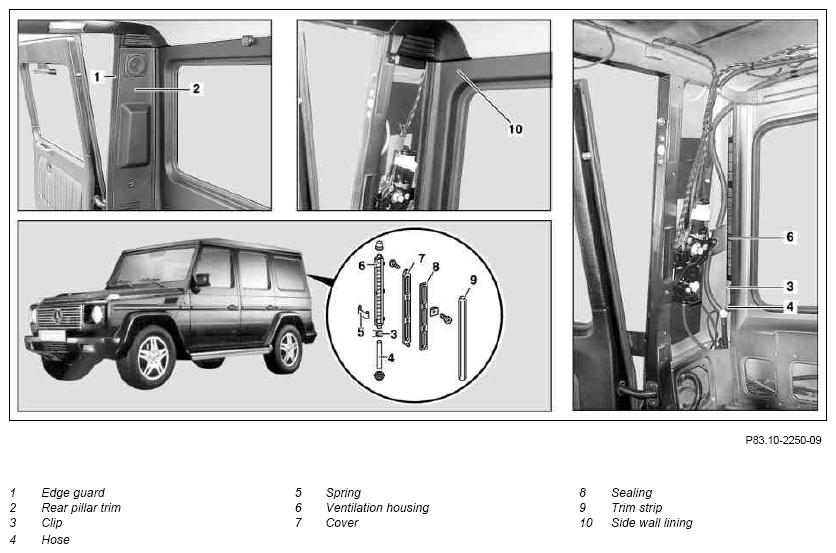

Shown on left side of vehicle
| Remove/install | |||
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| 1 | Pull out edge guard (1) of the rear pillar panel (2) | ||
| 2 | Remove stowage box | On model 463.222/ 244/ 247/ 322/ 332/ 336/340 with code (V53) Stowage box and luggage compartment cover. | AR68.72-P-0010GK |
| 3 | Remove rear pillar panel (2) | ||
| 4 | Disconnect connector from backup assist warning indicator (A44/1) | Except model 463.249 up to 30.6.02 Only with code (J44) Ultrasonic backup assist |
|
| 5 | Remove side wall lining (10) | Model 463.243/245/246/248/249/323/333 up to production period 31.5.04 | AR68.30-P-1450GN |
| Model 463.243/245/246/248/249/323/333 as of production period 1.6.04, Model 463.236/237/270/271/341/346 |
AR68.30-P-1450GX | ||
| Model 463.222/244/247/322/332/336/340 Station wagon, wheelbase of 2400 mm |
AR68.30-P-1450GM | ||
| 6 | Slacken clamp (3) on hose (4) | ||
| 7 | Detach hose (4) | ||
| 8 | Remove spring (5) and ventilation housing (6) | ||
| 9 | Remove cover (7), seal (8) and trim molding (9) | ||
| 10 | Install in the reverse order |
