Routing diagram of poly-V-belt - AR13.22-P-3902-02RVK

Shown on engine 113.992

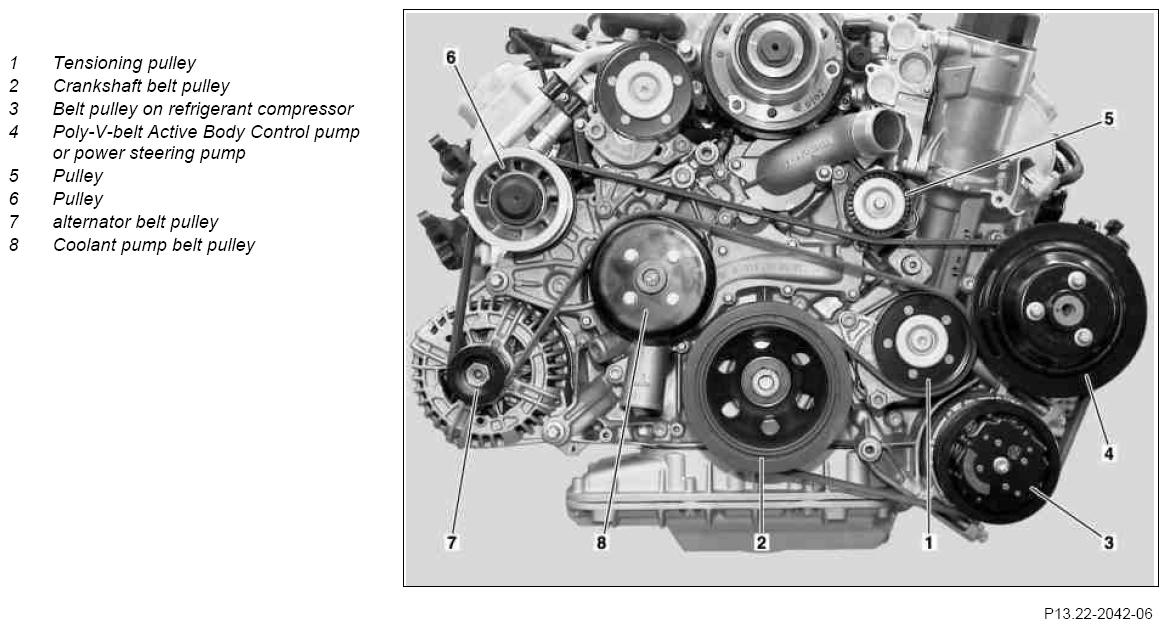

Fig 1: Poly-V-Belt Routing Diagram

G07871102

Courtesy of MERCEDES-BENZ USA
