Remove/install electrical contacts in equipotential bonding conductor - AR54.18-P-0101-01GR

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Mercedes-Benz G550, 2014 Mercedes-Benz G550, 2013 Mercedes-Benz G550, 2012 Mercedes-Benz G550, and 2011 Mercedes-Benz G550. However, it is still accessible from the selected car via links, so may be relevant.

Shown on the driver-side

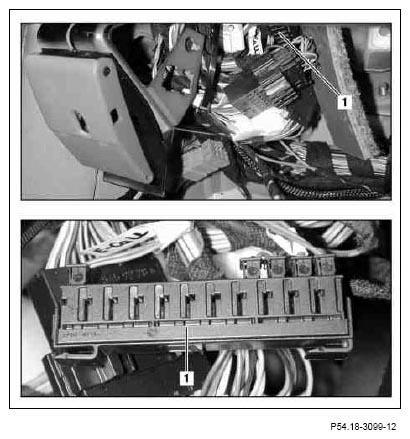

Pull out equipotential bonding (1) in driver footwell or front passenger footwell below the instrument panel on the cable network.

Fig 1: Identifying Equipotential Bonding Conductor Remove/Install Components
Courtesy of MERCEDES-BENZ USA

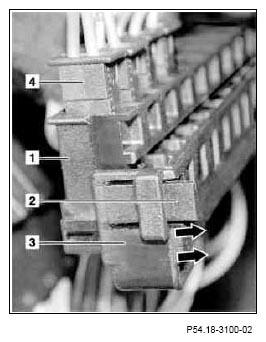

Push clip (2) on both sides outwards and remove fuse strip (3) in direction of arrow.
Pull out electrical connection (4) on equipotential bonding (1).
Install in the reverse order.

Fig 2: Identifying Equipotential Bonding, Clip, Fuse Strip And Electrical Connection

Courtesy of MERCEDES-BENZ USA
