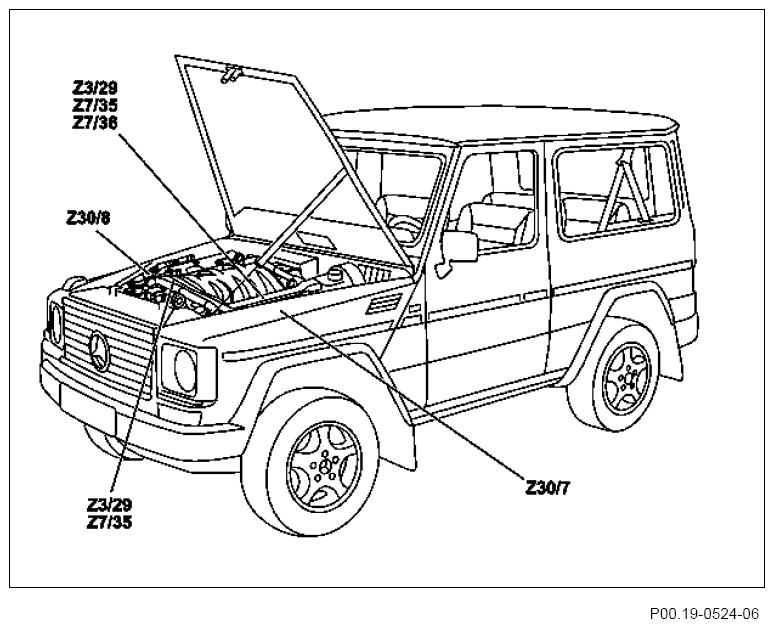

Arrangement and assignment of Z connector sleeves (cable connections in wiring harness) - engine compartment - GF00.19-P-3000-13D
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Mercedes-Benz G550, 2014 Mercedes-Benz G550, 2013 Mercedes-Benz G550, 2012 Mercedes-Benz G550, and 2011 Mercedes-Benz G550. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 463 with ENGINE 112.945
MODEL 463 with ENGINE 113.962
| Z connector sleeve | Designation | Component | Designation | Conn. pin |
|---|---|---|---|---|
| Z3/29 | Circuit 15 (1) (fused) connector sleeve | ← X35/63 | Control module box/engine separation point | 4 |
| → T1/5 | Ignition coil 5 | 2 | ||
| → T1/6 | Ignition coil 6 | 2 | ||
| → Z3/29 | Circuit (15 (2) (fused) connector sleeve | |||
| Engine 112.945 | → T1/4 | Ignition coil 4 | 2 | |
| Engine 113.962 | → T1/7 | Ignition coil 7 | 2 | |
| → T1/8 | Ignition coil 8 | 2 | ||
| Z3/29 | Circuit 15 (2) (fused) connector sleeve | ← Z3/29 | Circuit 15 (1) (fused) connector sleeve | |
| → T1/1 | Ignition coil 1 | 2 | ||
| → T1/2 | Ignition coil 2 | 2 | ||
| → T1/3 | Ignition coil 3 | 2 | ||
| Engine 113.962 | → T1/4 | Ignition coil 4 | 2 | |
| Z7/35 | Circuit 87 M1e (1) connector sleeve | ← X35/63 | Control module box/engine separation point | 12 |
| → Y62y5 | Cylinder 5 injector | 5.1 | ||
| → Y62y6 | Cylinder 6 injector | 6.1 | ||
| → Z7/35 | Circuit 87 M1e (2) connector sleeve | |||
| Engine 112.945 | → Y62y4 | Cylinder 4 injector | 4.1 | |
| Engine 113.962 | → Y62y7 | Cylinder 7 injector | 7.1 | |
| → Y62y8 | Cylinder 8 injector | 8.1 | ||
| Z7/35 | Circuit 87 M1e (2) connector sleeve | ← Z7/35 | Circuit 87 M1e (1) connector sleeve | |
| → B2/5 | Hot film mass air flow sensor | 2 | ||
| → B6/1 | Camshaft Hall sensor | 3 | ||
| → Y62y1 | Cylinder 1 injector | 1.1 | ||
| → Y62y2 | Cylinder 2 injector | 2.1 | ||
| → Y62y3 | Cylinder 3 injector | 3.1 | ||
| Engine 113.962 | → Y62y4 | Cylinder 4 injector | 4.1 | |
| Z7/36 | Circuit 87 M2e connector sleeve | ← X35/63 | Control module box/engine separation point | 13 |
| → Y22/6 | Variable intake manifold switchover valve | 2 | ||
| → Y31/1 | EGR vacuum transducer | 2 | ||
| → Y32 | Air pump switchover valve | 2 | ||
| Z30/7 | Left foglamp connector sleeve Only LHS |
← S1 | Light switch | N |
| → A1e53 | Foglight indicator lamp | E.1 | ||
| → E5/1 | Left foglamp | |||
| Z30/8 | Right foglamp connector sleeve Only LHS |
← S1 | Light switch | N |
| → E5/2 | Right foglamp |
