Remove/ install activated charcoal canister - AR47.30-P-8212GY

MODEL 463.249 as of 16.8.06 with ENGINE 113.962

MODEL 463.237 with ENGINE 273.963

Shown on model 463.249

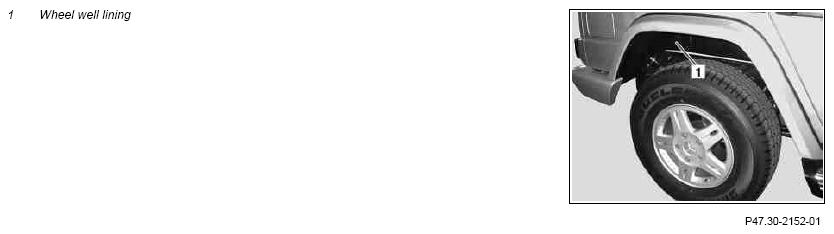

Fig 1: Identifying Activated Charcoal Canister Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

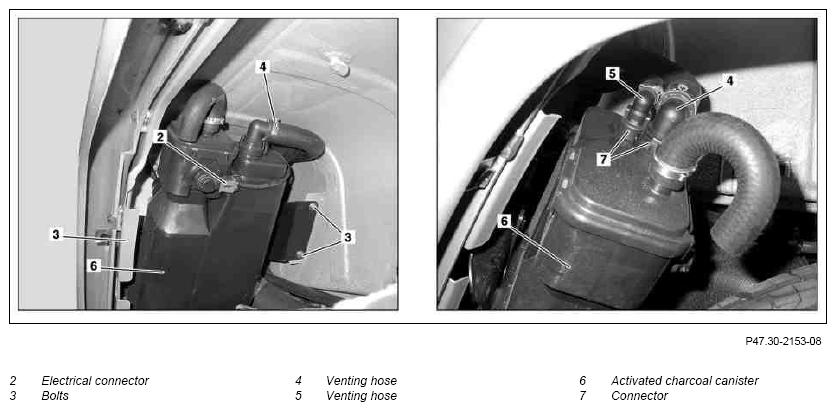

Fig 2: Identifying Activated Charcoal Canister Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove right rear wheel well cover (1)
2	Disconnect electrical connector (2)
3	Remove bolt (3)	Only loosen bolt (3) on fender.
4	Detach vent hoses (4, 5) on activated charcoal canister (6)	To do this unfasten plugs (7) by pressing.
5	Remove activated charcoal canister (6) with holder
6	Install in the reverse order
