Engine cooling system - inspect fluid level, adjust to correct level. Inspect anticorrosion/antifreeze protection, adjust to correct concentration - AP20.00-P-2010GA

ENGINE 112.945 in MODELS 463.209/232/233/244/245/250

ENGINE 113.962 in MODELS 463.206/240/241/247/248/249/254

ENGINE 113.982 in MODELS 463.241/243/246

ENGINE 113.993 in MODELS 463.270/271

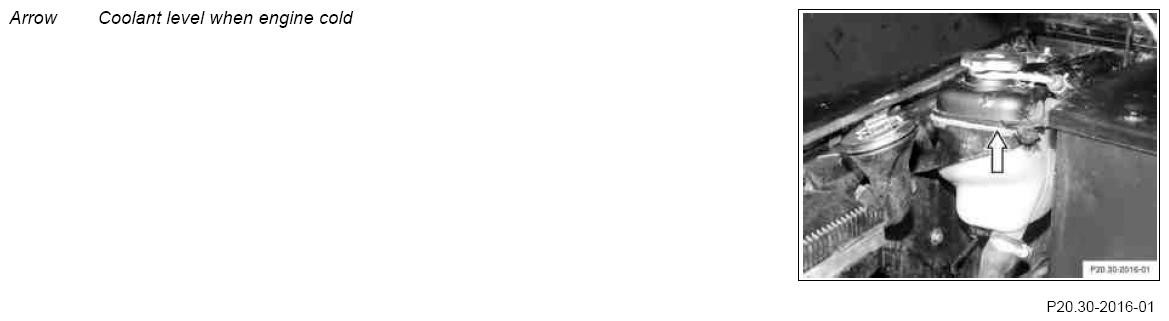

Fig 1: Identifying Coolant Level When Engine Cold

Courtesy of MERCEDES-BENZ USA

	Check
	Risk of injury to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage bottles. Wear protective gloves, protective clothing and eye protection.	AS20.00-Z-0001-01A
	Notes on coolant	All engines	AH20.00-N-2080-01A
1	Open cap of expansion reservoir
2	Check coolant level, adjust to correct level if necessary.	The coolant level is on the marking (arrow) when the coolant is cold. For coolant at operating temperature the coolant level is about 1 cm above the marking (arrow).
3	Inspect cooling system for leaks	Only if there is coolant loss and against a separate repair order.
	Inspect cooling system for leaks	Only engines 112.945, 113.962/982	AR20.00-P-1010HA
4	Inspect anticorrosion/antifreeze agent in coolant and coolant composition, adjust to correct level if necessary	Only use approved anticorrosion or antifreeze agents.	*BF20.00-P-1001-02K

COOLING SYSTEM

Number	Designation			Engine 112.945 in models 463.209/232/233/244/245/250	Engine 113.962 in models 463.206/240/241/247/248 249/254	Engine 113.982 in models 463.241/243/24 6
BF20.00-P-1001-02K	Cooling system	Total capacity	Liters	≈11.5	≈12	≈11.9
		Capacity of anticorrosion/antifreeze agent down to -37°C	Liters	≈5.8	≈6	≈ 5.95
		Capacity of anticorrosion/antifreeze agent down to -45°C	Liters	≈6.4	≈6.6	≈6.55
		Specifications for Operating Fluids	Sheet	BB00.40-P-0310-01A	BB00.40-P-0310-01A	BB00.40-P-0310-01A
			Sheet	BB00.40-P-0325-00A	BB00.40-P-0325-00A	BB00.40-P-0325-00A

COOLING SYSTEM

Number	Designation			Engine 113.993 in model 463.270/271
BF20.00-P-1001-02K	Cooling system	Total capacity	Liters	≈13.0
		Capacity of anticorrosion/antifreeze agent down to -37 °C	Liters	≈6.5
		Capacity of anticorrosion/antifreeze agent down to -45 °C	Liters	≈7.3
		Specifications for Operating Fluids	Sheet	BB00.40-P-0310-01A
			Sheet	BB00.40-P-0325-00A
