Charge air temperature sensor position - GF09.41-P-4105-01GB

Shown on model 463

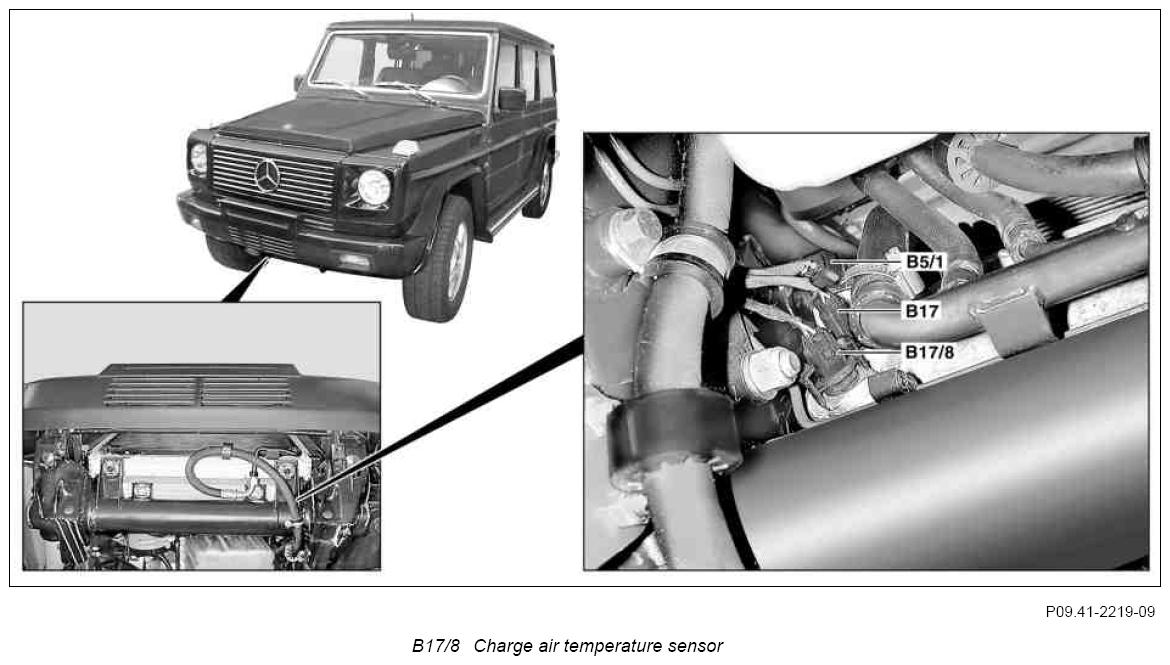

Fig 1: Identifying Charge Air Temperature Sensor

G07871073

Courtesy of MERCEDES-BENZ USA
