Remove/install voice control system control unit - AR82.70-P-0003GM
MODEL 463.243 /244 /245 /246 /247 /248 /249 /250 /254 /270 /271 /303 /309 /322 /323 /332 /333 /340 /341 with CODE (EL1) Voice control for telephone (Linguatronic) - German with CODE (EL2) Voice control for telephone (Linguatronic) - English with CODE (EL3) Voice control for telephone (Linguatronic) - French with CODE (EL4) Voice control for telephone (Linguatronic) - Italian with CODE (EL5) Voice control for telephone (Linguatronic) - Spanish with CODE (EL6) Voice control for telephone (Linguatronic) - Swiss German
| Remove/install | |||
|---|---|---|---|
| 1 | Activate Service mode in Tele-Aid emergency call system | AR82.95-P-0005-03GR | |
| Notes regarding the Tele-Aid emergency call system | AH82.95-P-0001-01GA | ||
| Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| 2 | Disconnect battery ground line | Except model 463.248 with code 979 Special protection version. | AR54.10-P-0003G |
| Model 463.248 with code 979 Special protection version, with code ZS6 Special protection version FB6, with code E26 Additional battery 100 Ah incl. cutoff relay, Model 463.248 with code 979 Special protection version, with code ZS7 Special protection version FB7, with code E26 Additional battery 100 Ah incl. cutoff relay |
AR54.10-P-0003PM | ||
| Notes on battery | AH54.10-P-0001-01A | ||
| 3 | Fold back left front floor covering | ||

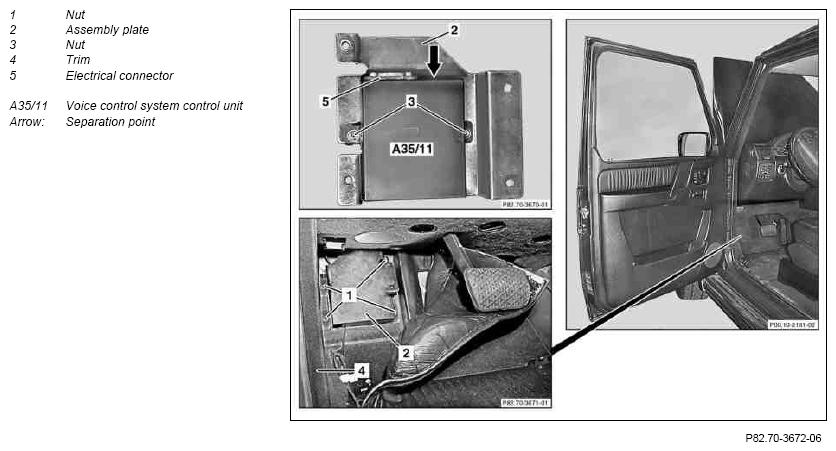

| 4 | Unscrew nuts (1). | ||
| 5 | Remove voice control system control unit (A35/11) with assembly plate (2) | ||
| 6 | Separate electrical connector (5) | ||
| 7 | Separate electrical connector for fiber optic cable D2B from separation point (arrow) | ||
| 8 | Cover fiber optic cable | AR82.95-P-0005-01A | |
| Notes on fiber optic cable | AH82.70-P-0001-02A | ||
| 9 | Unscrew nuts (3) | ||
| 10 | Remove voice control system control unit (A35/11) from assembly plate (2) | ||
| 11 | Install in the reverse order | ||
| 12 | Deactivate service mode in TELE AID emergency call system | AR82.95-P-0005-03GR | |
| Notes regarding the Tele-Aid emergency call system | AH82.95-P-0001-01GA | ||
| 13 | Read out fault memory and erase | Stored faults which can result from cables being disconnected or from simulation during removal and installation or test work, have to be processed and erased in the fault memories after completing the work |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
