Remove/install vehicle interface (cell phone) - AR82.70-P-8920GR
MODEL 463.243 /244 /245 /247 /248 /250 /254 /270 /303 /309 /322 /323 /332 /333 /340 /341 with CODE (ET7) Hands-free system including microphone and Nokia 6210 cell phone with CODE (EV7) Hands-free system including microphone and holder for Nokia 3110 cell phone with CODE (EH1) Mobile phone with cradle and hands-free system with CODE (EV8) Mobile phone preinstallation
MODEL 463.202 /222 /236 /237 /303 /306 /336 /340 /341 /346 with CODE (EH2) Comfort telephony
| Remove/install | |||
|---|---|---|---|
| 1 | Activate Service mode in TELEAID emergency call system | Only on model 463.243/244/245/250/309/ 322/323/332/333 with code ET2 TELEAID car phone emergency call system, on model 463.247/248/254/270 up to 1.4.07 with code ET2 TELEAID car phone emergency call system |
AR82.95-P-0005-03GR |
| Notes regarding the Tele-Aid emergency call system | AH82.95-P-0001-01GA | ||
| Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| 2 | Disconnect battery ground line | All models except model 463.248 with code 979 Special protection version | AR54.10-P-0003G |
| Model 463.248 with: Code 979 Special protection version Code ZS6 Special protection version FB6 Code ZS7 Special protection version FB7 Code E26 100 Ah additional battery incl. cutoff relay |
AR54.10-P-0003PM | ||
| Notes on battery | All models | AH54.10-P-0001-01A | |
| 3 | Remove center console | Model 463.202/222/236/243/244/245/247/ 248/250/254/270/303/306/309/322/323/ 332/333/336/340/341/346 | AR68.20-P-2000GA |
| Type 463.237 | AR68.20-P-2000US | ||
| 4 | Remove ETC [EGS] control unit (N15/3) | Only on model 463.244/245/250 with transmission 722.610, Model 463.243/246/247/248/249/254 with transmission 722.630, Model 463.322/323 with transmission 722.637, Model 463.309/332/333 with transmission 722.638, Model 463.270/271 with transmission 722.645 |
AR27.19-P-1719GA |

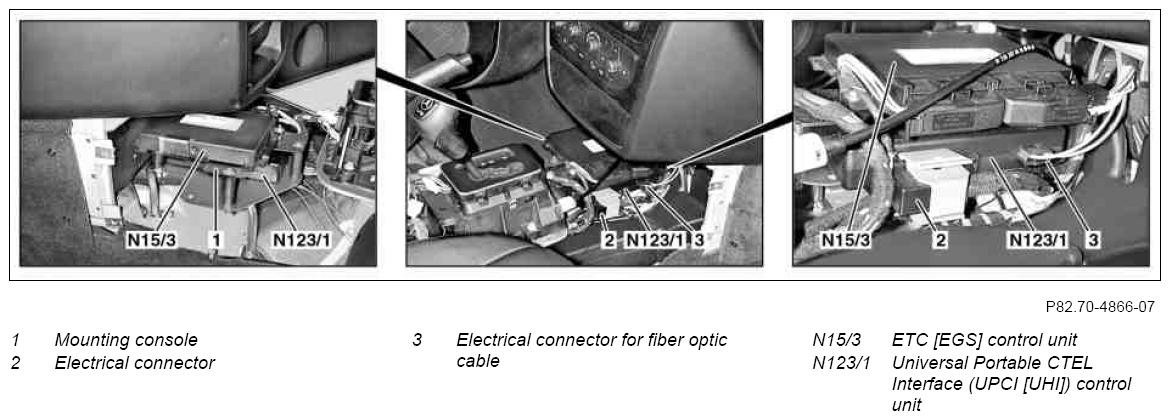

| 5 | Remove console (1) | ||
| 6 | Disconnect electrical connector for fiber optic cable (3) from Universal Cell phone Interface (UPCI [UHI]) control unit (N123/1) | ||
| Notes on fiber optic cable | AH82.70-P-0001-02A | ||
| 7 | Cover fiber optic cable | AR82.95-P-0005-01A | |
| 8 | Disconnect electrical connector (2) from Universal Cell phone Interface (UPCI [UHI]) control unit (N123/1) | ||
| 9 | Remove Universal Cell phone Interface (UPCI [UHI]) control unit (N123/1) | ||
| 10 | Install in the reverse order | ||
| 11 | Deactivate service mode in TELEAID emergency call system | Only on model 463.243/244/245/250/309/ 322/323/332/333 with code ET2 TELEAID car phone emergency call system, on model 463.247/248/254/270 up to 1.4.07 with code ET2 TELEAID car phone emergency call system |
AR82.95-P-0005-03GR |
| Notes regarding the Tele-Aid emergency call system | AH82.95-P-0001-01GA | ||
| 12 | Read out fault memory and erase | Stored faults which may be caused by removed cables or by a simulation, must be processed and erased in the fault memories after completing the work. |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
