Remove/install antenna splitter - AR82.70-P-8953GM

MODEL 463.222 /236 /237 /243 /244 /245 /246 /247 /248 /249 /270 /271 /322 /323 /332 /333 /336 /340 /341 /346

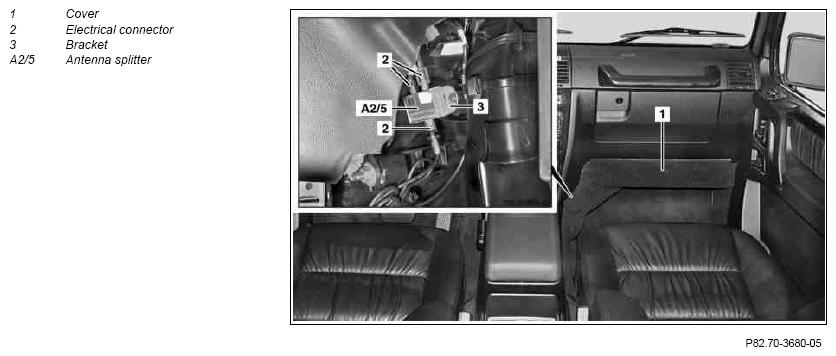

Fig 1: Identifying Antenna Splitter Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove cover (1) below instrument panel on right		AR68.10-P-1520GM
2	Detach electrical connectors (2) of antenna splitter (A2/5)
3	Remove antenna splitter (A2/5) from bracket (3)	To this end, tilt the antenna splitter (A2/5) downward.
4	Install in the reverse order
