Wiring and plug connectors, trunk (right), location and assignment - GF00.19-P-1000-07I

MODEL 463 with ENGINE 112.945

MODEL 463 with ENGINE 113.962

MODEL 463 with ENGINE 606.964

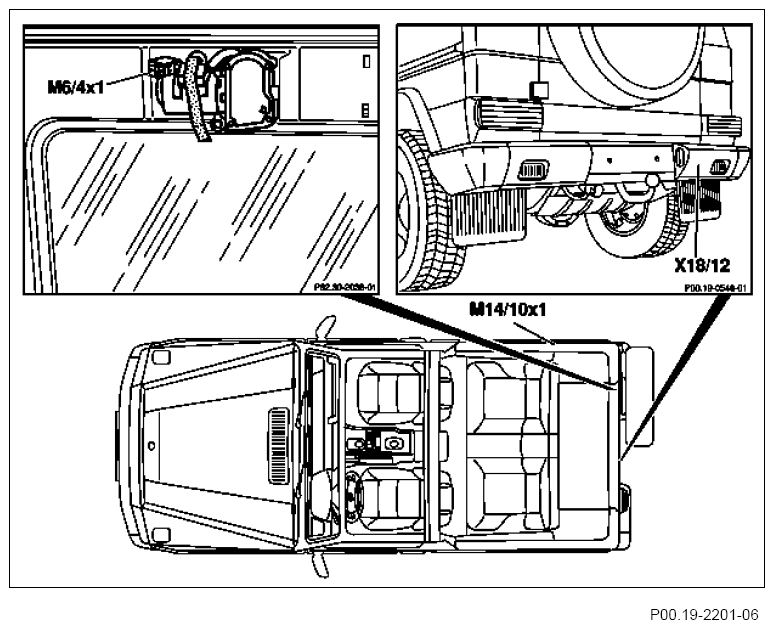

Fig 1: Assignment And Location Of Wiring And Plug Connectors - Trunk, Right (1 Of 2)

Courtesy of MERCEDES-BENZ USA

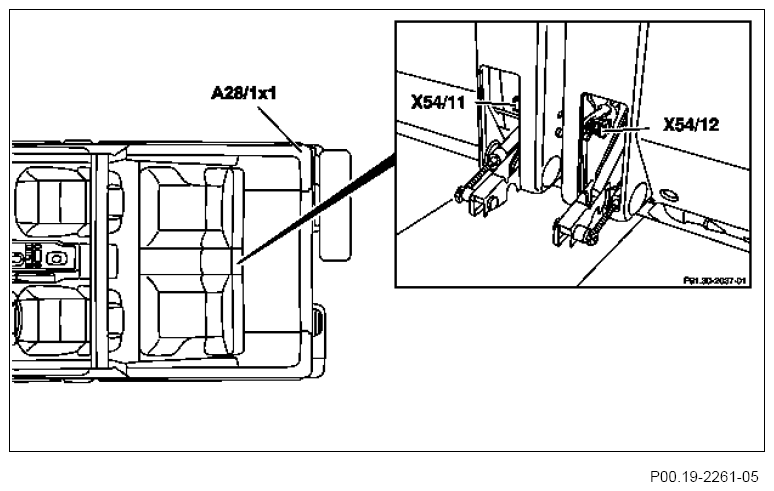

Fig 2: Assignment And Location Of Wiring And Plug Connectors - Trunk, Right (2 Of 2)

Courtesy of MERCEDES-BENZ USA

Item	Designation	Cable colors		Cable colors	Notes
A28/1x1	Antenna splitter voltage supply connector	red/white (rt/ws)			Valid for convertible as of 1.6.99
M6/4x1	Tailgate wiper motor connector	green (gn)	1	green (gn)	Optional rear wiper
		brown (br)	2	brown (br)
		black (sw)	3	black/blue (sw/bl)
		yellow (ge)	4	yellow (ge)
M14/10x1	Fuel filler flap CL motor connector	blue (bl)	1	blue (bl) blue (bl)	Valid for station wagon
		white (ws)	2	white (ws) white (ws)	Valid for station wagon
X18/12	License plate lighting connector	gray/green (gr/gn)	1	gray/green (gr/gn)	Optional trailer coupling
		gray/green (gr/gn)			up to 31.5.98
		brown (br)	2	brown (br) brown (br)	up to 31.5.98
X54/11	Left rear and right heated seat cushion connector	brown (br)	1	brown (br)	Optional HS, as of 1.6.98
		blue (bl)	2	black/blue) (sw/bl) black/blue) (sw/bl)
		blue (bl)	3	black/blue (sw/bl)
		brown (br)	4	brown/white (br/ws)
X54/12	Left and right heated seat connector, 4-pin	brown (br)	1	brown (br)	Optional HS, as of 1.6.98
		blue (bl)	2	black/red (sw/rt) black/red (sw/rt)
		blue (bl)	3	black/red (sw/rt)
		brown (br)	4	brown/yellow (br/ge)
