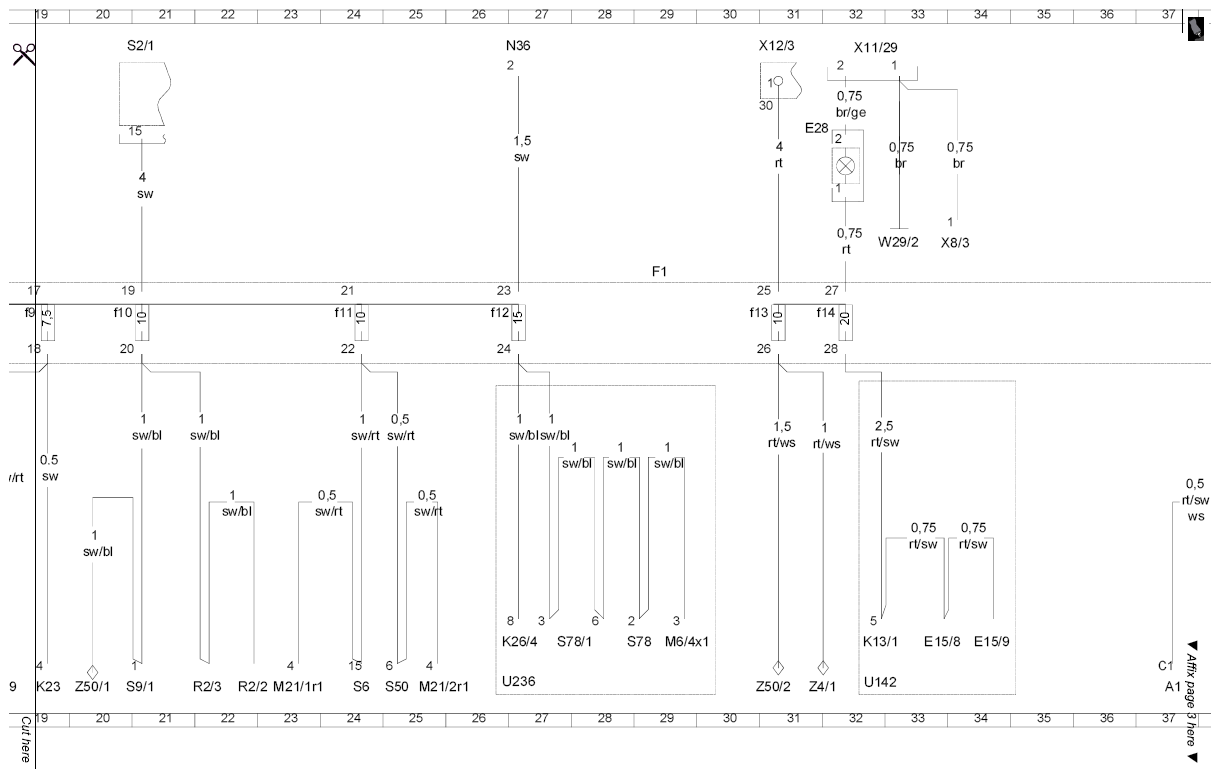

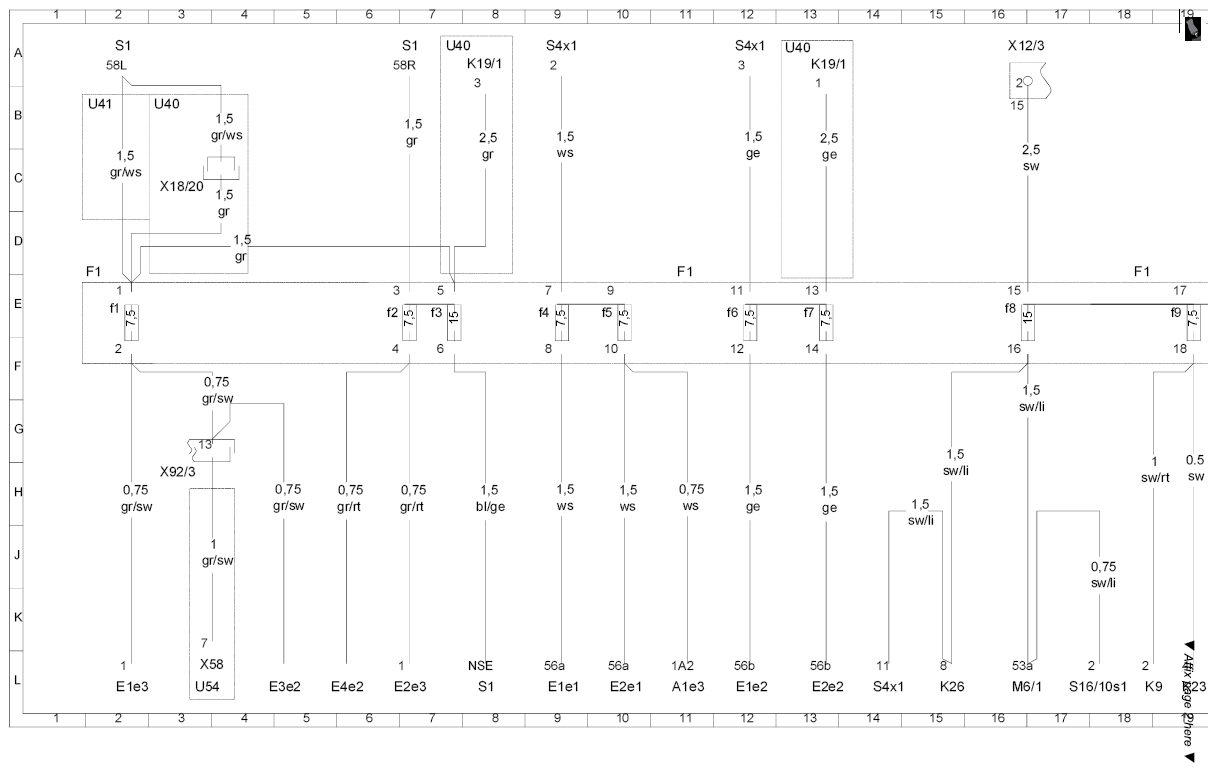

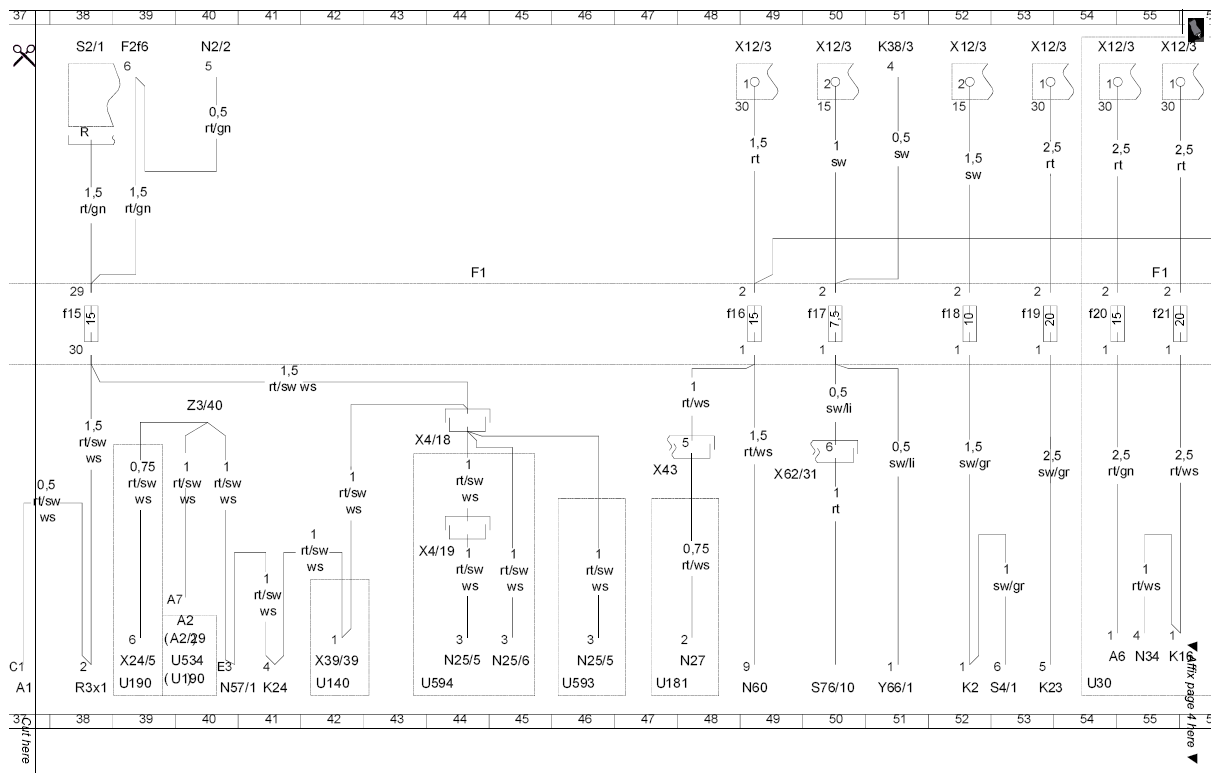

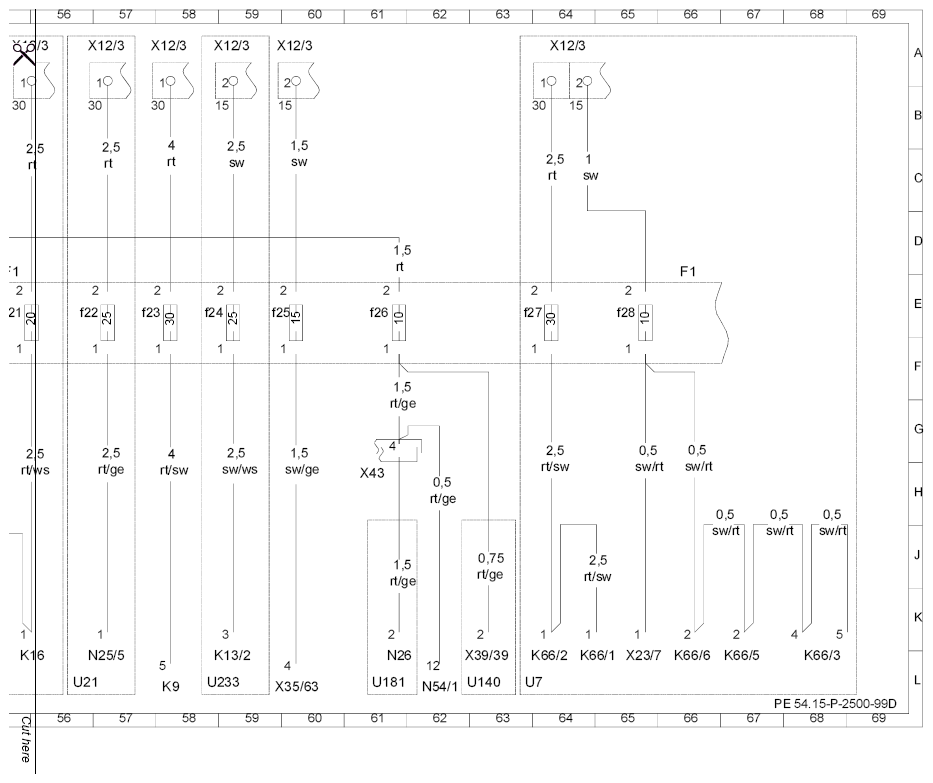

Electric wiring diagram of fuse box (F1) - PE54.15-P-2500-99D
MODEL 463.### 1# with ENGINE 112.945 as of 1.6.98 up to 1.6.99 Left-hand steering
MODEL 463.### 1# with ENGINE 113.962 up to 1.6.99 Left-hand steering
| Code: | Designation: | Position: |
|---|---|---|
| A1 | Instrument cluster | 37L |
| A1e3 | High beam indicator lamp | 11L |
| A2 | Radio | 39K |
| A2/29 | Radio and navigation | operating unit 39 K |
| A6 | Stationary heater/heater booster unit | 54L |
| E15/8 | Left rear dome lamp | 33L |
| E15/9 | Right rear dome lamp | 34L |
| E1e1 | High beam | 9L |
| E1e2 | Low beam | 12L |
| E1e3 | Standing and parking lamp | 2L |
| E28 | Test lamp (fuses) | 31B |
| E2e1 | High beam | 10L |
| E2e2 | Low beam | 13L |
| E2e3 | Standing and parking lamp | 6L |
| E3e2 | Tail and parking lamp | 4L |
| E4e2 | Tail/parking lamp | 5L |
| F1 | Fuse box | 1E |
| F1 | Fuse box | 11E |
| F1 | Fuse box | 18E |
| F1 | Fuse box | 29E |
| F1 | Fuse box | 44E |
| F1 | Fuse box | 55E |
| F1 | Fuse box | 66E |
| F1f1 | Fuse 1 | 2E |
| F1f10 | Fuse 10 | 20E |
| F1f11 | Fuse 11 | 24E |
| F1f12 | Fuse 12 | 26E |
| F1f13 | Fuse 13 | 30E |
| F1f14 | Fuse 14 | 31E |
| F1f15 | Fuse 15 | 38E |
| F1f16 | Fuse 16 | 47E |
| F1f17 | Fuse 17 | 49E |
| F1f18 | Fuse 18 | 51E |
| F1f19 | Fuse 19 | 52E |
| F1f2 | Fuse 2 | 6E |
| F1f20 | Fuse 20 | 53E |
| F1f21 | Fuse 21 | 54E |
| F1f22 | Fuse 22 | 55E |
| F1f23 | Fuse 23 | 56E |
| F1f24 | Fuse 24 | 57E |
| F1f25 | Fuse 25 | 58E |
| F1f26 | Fuse 26 | 60E |
| F1f27 | Fuse 27 | 62E |
| F1f28 | Fuse 28 | 64E |
| F1f3 | Fuse 3 | 7E |
| F1f4 | Fuse 4 | 9E |
| F1f5 | Fuse 5 | 10E |
| F1f6 | Fuse 6 | 12E |
| F1f7 | Fuse 7 | 13E |
| F1f8 | Fuse 8 | 16E |
| F1f9 | Fuse 9 | 19E |
| F2f6 | Fuse 6 | 39A |
| K13/1 | Rear window defroster relay module | 32L |
| K13/2 | Heated windshield relay module | 58L |
| K16 | Stationary heater relay module (terminal 15/30) | 55L |
| K19/1 | Separation relay module (circuit 56/56b, daytime running lamps) | 8A |
| K19/1 | Separation relay module (circuit 56/56b, daytime running lamps) | 13A |
| K2 | HCS [SRA] relay module | 52L |
| K23 | Blower motor relay | 19L |
| K23 | Blower motor relay | 53L |
| K24 | CF [KFB] relay module | 41L |
| K26 | Wiper system relay module | 15L |
| K26/4 | Rear wiper system relay | 26L |
| K38/3 | Starter lock-out relay module | 51A |
| K66/1 | Electric soft top down relay | 64L |
| K66/2 | Electric soft top up relay | 63L |
| K66/3 | Electric soft top parking brake recognition relay | 68L |
| K66/5 | Left front soft top locking relay | 67L |
| K66/6 | Right front soft top locking relay | 66L |
| K9 | Auxiliary fan relay module (stage 1 and 2) | 18L |
| K9 | Auxiliary fan relay module (stage 1 and 2) | 58L |
| M21/1M | Mirror heater | 23L |
| M21/2r1 | Mirror heater | 25L |
| M6/1 | Wiper motor | 16L |
| M6/4x1 | Rear window wiper motor connector | 29L |
| N2/2 | ETR [GUS] control module with airbag (AB) | 40Az |
| N25/5 | Front HS [SIH] control module | 44L |
| N25/5 | Front HS [SIH] control module | 46L |
| N25/5 | Front HS [SIH] control module | 56L |
| N25/6 | Rear HS [SIH] control module | 45L |
| N26 | ATA [EDW] control module | 61L |
| N27 | Towing sensor control module | 48L |
| N34 | Stationary heater timer | 55L |
| N36 | Transmission output speed sensor ballast | 26A |
| N54/1 | IR DAS [IR FBS] control module | 62L |
| N57/1 | Convenience feature control module | 40L |
| N60 | CL [ZV] control module | 48L |
| R2/2 | Left heated windshield washer nozzle | 22L |
| R2/3 | Right heated windshield washer nozzle | 21L |
| R3x1 | Cigar lighter connector | 38L |
| S1 | Exterior lamp switch | 2A |
| S1 | Exterior lamp switch | 6A |
| S1 | Exterior lamp switch | 8L |
| S16/10s1 | Reverse lamp switch | 17L |
| S2/1 | Ignition/starter switch | 20A |
| S2/1 | Ignition/starter switch | 38A |
| S4/1 | HCS [SRA] switch | 52L |
| S4x1 | Combination switch connector | 9A |
| S4x1 | Combination switch connector | 12A |
| S4x1 | Combination switch connector | 14L |
| S50 | Outside rearview mirror adjustment switch | 24L |
| S6 | Hazard flasher/CL [ZV] switch group | 24L |
| S76/10 | Road/neutral/off-road switch | 50L |
| S78 | Rear window wiper/washer switch | 28L |
| S78/1 | Rear window wiper switch I. Continuous wipe II. Intermittent wipe | 27L |
| S9/1 | Stop lamp switch (4-pin) | 20L |
| U140 | Valid for portable cellular telephone | 42L |
| U140 | Valid for portable cellular telephone | 62L |
| U142 | Not valid for cabriolet | 32L |
| U181 | Valid for ATA | 47L |
| U181 | Valid for ATA | 61L |
| U190 | Valid for engine APS | 39L |
| U190 | Valid for engine APS | 39L |
| U21 | Valid for seat heaters | 56L |
| U233 | Valid for rear window defroster | 58L |
| U236 | Valid for rear wiper | 26L |
| U30 | Valid for stationary heater | 54L |
| U40 | Valid for daytime running amps | 3B |
| U40 | Valid for daytime running amps | 7A |
| U40 | Valid for daytime running amps | 13A |
| U41 | Valid for active charcoal filter | 1B |
| U534 | Valid for radio | 39L |
| U54 | Valid for towing hitch | 3L |
| U593 | Valid for front seat heated cushion | 46L |
| U594 | Valid for front and rear seat heated cushions | 43L |
| U7 | Valid for convertible | 63L |
| W29/2 | Ground (right A-pillar) | 32D |
| X11/29 | Fuse test connector | 32A |
| X12/3 | Terminal block (circuit 30, 15, 61 (3-pin) | 16A |
| X12/3 | Terminal block (circuit 30, 15, 61 (3-pin) | 30A |
| X12/3 | Terminal block (circuit 30, 15, 61 (3-pin) | 48A |
| X12/3 | Terminal block (circuit 30, 15, 61 (3-pin) | 50A |
| X12/3 | Terminal block (circuit 30, 15, 61 (3-pin) | 52A |
| X12/3 | Terminal block (circuit 30, 15, 61 (3-pin) | 53A |
| X12/3 | Terminal block (circuit 30, 15, 61 (3-pin) | 54A |
| X12/3 | Terminal block (circuit 30, 15, 61 (3-pin) | 55A |
| X12/3 | Terminal block (circuit 30, 15, 61 (3-pin) | 56A |
| X12/3 | Terminal block (circuit 30, 15, 61 (3-pin) | 57A |
| X12/3 | Terminal block (circuit 30, 15, 61 (3-pin) | 58A |
| X12/3 | Terminal block (circuit 30, 15, 61 (3-pin) | 59A |
| X12/3 | Terminal block (circuit 30, 15, 61 (3-pin) | 64A |
| X18/20 | Daytime running lamps connector | 3C |
| X23/7 | Soft top connector (Reed contact switch) | 65L |
| X24/5 | APS/HLS connector | 39L |
| X35/63 | Control module box/engine separation point | 59L |
| X39/39 | Handy connector | 42L |
| X39/39 | Handy connector | 62L |
| X4/18 | Terminal block (circuit 15R) (1-pin) | 43G |
| X4/19 | Terminal block (circuit 15Z) (1-pin) | 43J |
| X43 | ATA [EDW]/central locking (CL [ZV]) connector | 47H |
| X43 | ATA [EDW]/central locking (CL [ZV]) connector | 61H |
| X58 | Trailer hitch socket (13-pin) | 3L |
| X62/31 | Differential lock connector | 49H |
| X8/3 | Rear wiper connector | 33D |
| X92/3 | Frame connector (22-pin) | 3H |
| Y66/1 | Reverse/parking lock valve | 51L |
| Z3/40 | Circuit 15R connector sleeve (fused, F1f15) | 40G |
| Z4/1 | Circuit 30 connector sleeve (fused), convenience and rear dome lamp | 31L |
| Z50/1 | Connector sleeve 1 | 20L |
| Z50/2 | Connector sleeve 2 | 30L |
