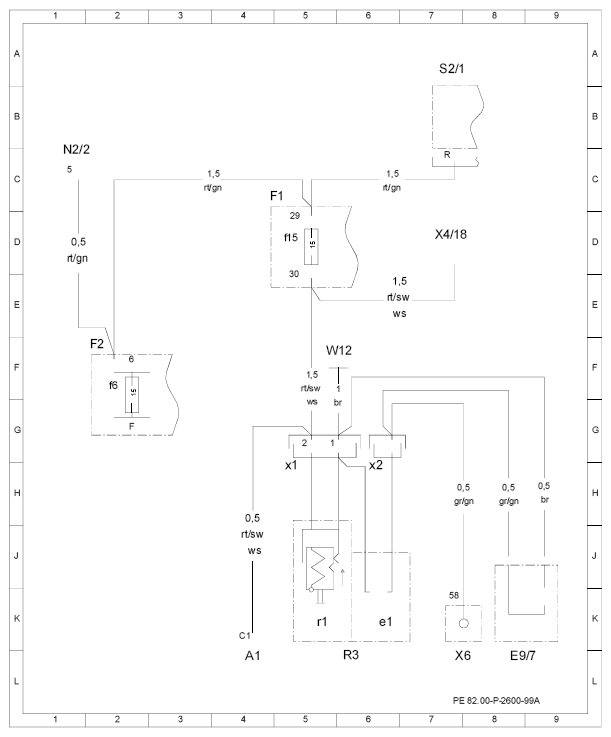

| A1 |
Instrument cluster |
4 L |
| E9/7 |
Front ashtray illumination |
8 L |
| F1 |
Fuse box |
4 C |
| F1f15 |
Fuse 15 |
5 D |
| F2 |
Fuse box (8 fuses) |
2 F |
| F2f6 |
Fuse 6 |
2 F |
| N2/2 |
Emergency tensioning retractor (ETR [GUS]) with airbag (AB) control unit |
1 C |
| R3 |
Front cigar lighter (with ashtray illumination) |
6 L |
| R3e1 |
Illumination |
6 K |
| R3r1 |
Heating element |
5 K |
| R3x1 |
Cigar lighter connector |
5 H |
| R3x2 |
Illumination connector |
6 H |
| S2/1 |
Ignition/starter switch |
7 A |
| W12 |
Ground (center console) |
5 F |
| X4/18 |
Circuit 15R terminal block (1-pin) |
7 D |
| X6 |
Circuit 58 terminal block (2-pin) |
7 L |
