Gap dimensions on hoods, doors and lids - AR60.00-P-0700-01EC
CHECK VALUES FOR GAPS
| Number | Designation | Model 207.3 | Model 207.4 | |||
|---|---|---|---|---|---|---|

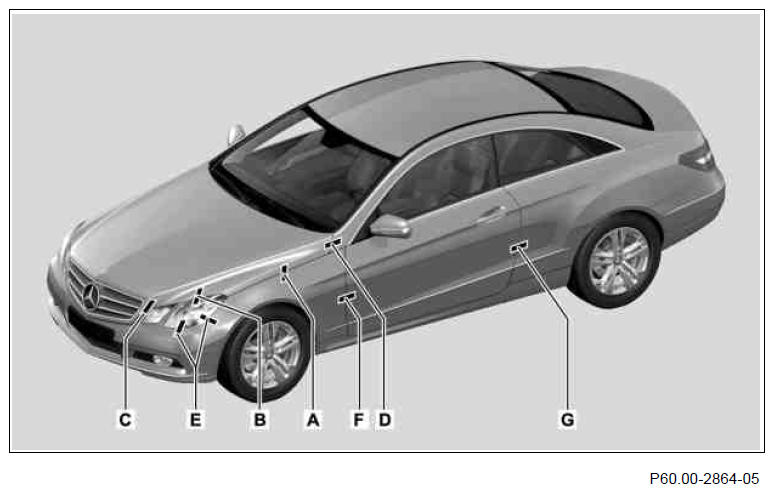

| BE60.00-P-1001-01W | Gap dimension | Engine hood to fender | Dimension "A" | mm | 4 (±1) | 4 (±1) |
| Engine hood to headlamp | Dimension "B" | mm | 4 (±1) | 4 (±1) | ||
| Engine hood to bumper | Dimension "C" | mm | 6 (+1/-2) | 6 (+1/-2) | ||
| Engine hood to A-pillar | Dimension "D" | mm | 4.5 (+2/-1) | 4.5 (+2/-1) | ||
| Bumper to headlamp | Dimension "E" | mm | 2.5 (±1.5) | 2.5 (±1.5) | ||
| See picture | AR60.00-P-0700-01EC | AR60.00-P-0700-01EC | ||||
| BE60.00-P-1002-01W | Gap dimension | Front door to fender | Dimension "F" | mm | 4 (+1.5/-0.5) | 4 (+1.5/-0.5) |
| Front door to rear fender | Dimension "G" | mm | 4 (+1/-0.5) | 4 (+1/-0.5) | ||
| See picture | AR60.00-P-0700-01EC | AR60.00-P-0700-01EC | ||||

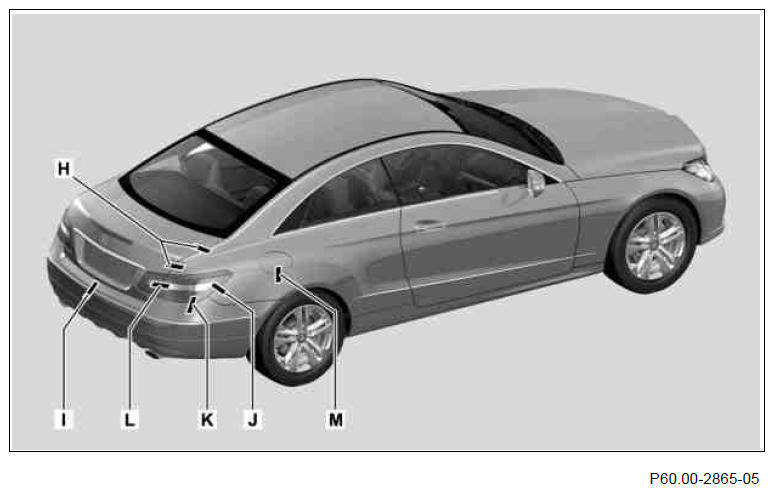

| BE60.00-P-1003-01W | Gap dimension | Trunk lid to rear fender, top | Dimension "H" | mm | 4 (±1) | 4 (±1) |
| Trunk lid to bumper | Dimension "I" | mm | 5.5 (±2) | 5.5 (±2) | ||
| Rear fender to rear lamp unit | Dimension "J" | mm | 2 (+1.5/-1) | 2 (+1.5/-1) | ||
| Taillamp to bumper | Dimension "K" | mm | 2 (±1) | 2 (±1) | ||
| Taillamp, trunk lid to taillamp | Dimension "L" | mm | 4 (±1) | 4 (±1) | ||
| See picture | AR60.00-P-0700-01EC | AR60.00-P-0700-01EC | ||||
| BE60.00-P-1004-01W | Gap dimension | Fuel filler flap (around) | Dimension "M" | mm | 3 (+1/-0.5) | 3 (+1/-0.5) |
| See picture | AR60.00-P-0700-01EC | AR60.00-P-0700-01EC | ||||

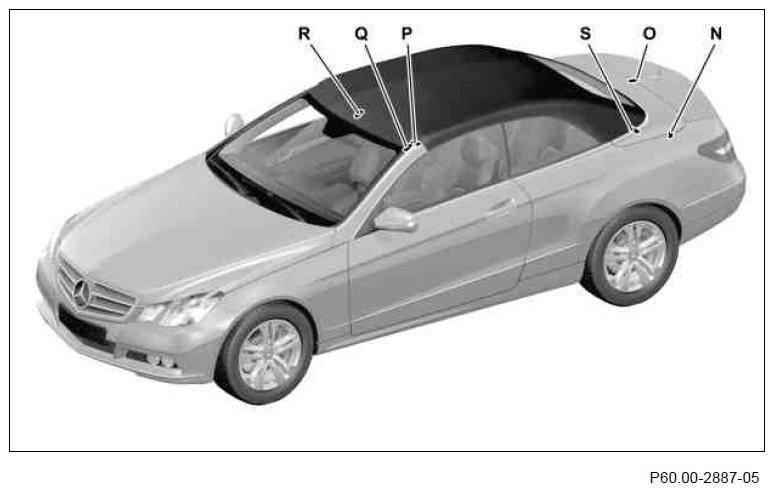

| BE60.00-P-1005-01W | Gap dimension | Soft top compartment lid to rear fender | Dimension "N" | mm | - | 4 (±1) |
| Soft top compartment cover to trunk lid | Dimension "O" | mm | - | 4 (+1.5/-0.5) | ||
| Wind deflector to A-pillar | Dimension "P" | mm | - | 3.5 (±1.5) | ||
| Wind deflector to water deflector | Dimension "Q" | mm | - | 2, 1 (±1) | ||
| See picture | - | AR60.00-P-0700-01EC | ||||
| BE60.00-P-1006-01W | Gap dimension | Soft top to windshield frame | Dimension "R" | mm | - | 11 (±1.5) |
| Soft top to soft top compartment cover | Dimension "S" | mm | - | 3 (+2) | ||
| See picture | - | AR60.00-P-0700-01EC |
Illustrated on model 207.3
Adjust hood, doors and lids as shown in drawings. The gap should not run wedge-shaped or be too narrow at points.
Deviations from parallel gap should be max. 1 mm over the entire length. If the inside clearance is too large or too small, the movable body parts must be centered accordingly. The reference measurements apply only for repair work on vehicles damaged in accidents.
Illustrated on model 207.3
Model 207.4
