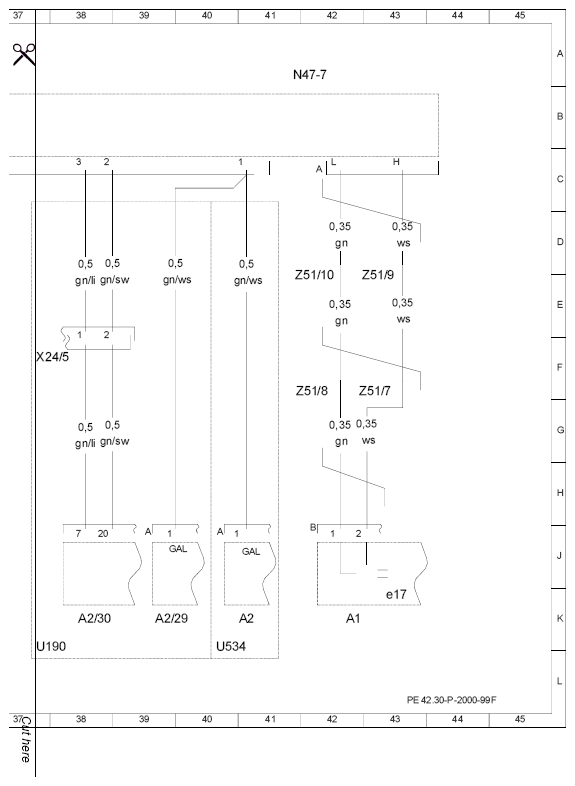

| A1 |
Instrument cluster |
42K |
| A1e17 |
ABS indicator lamp |
43K |
| A2 |
Radio |
40K |
| A2/29 |
Radio and navigation operating unit |
39K |
| A2/30 |
Navigation processor |
38K |

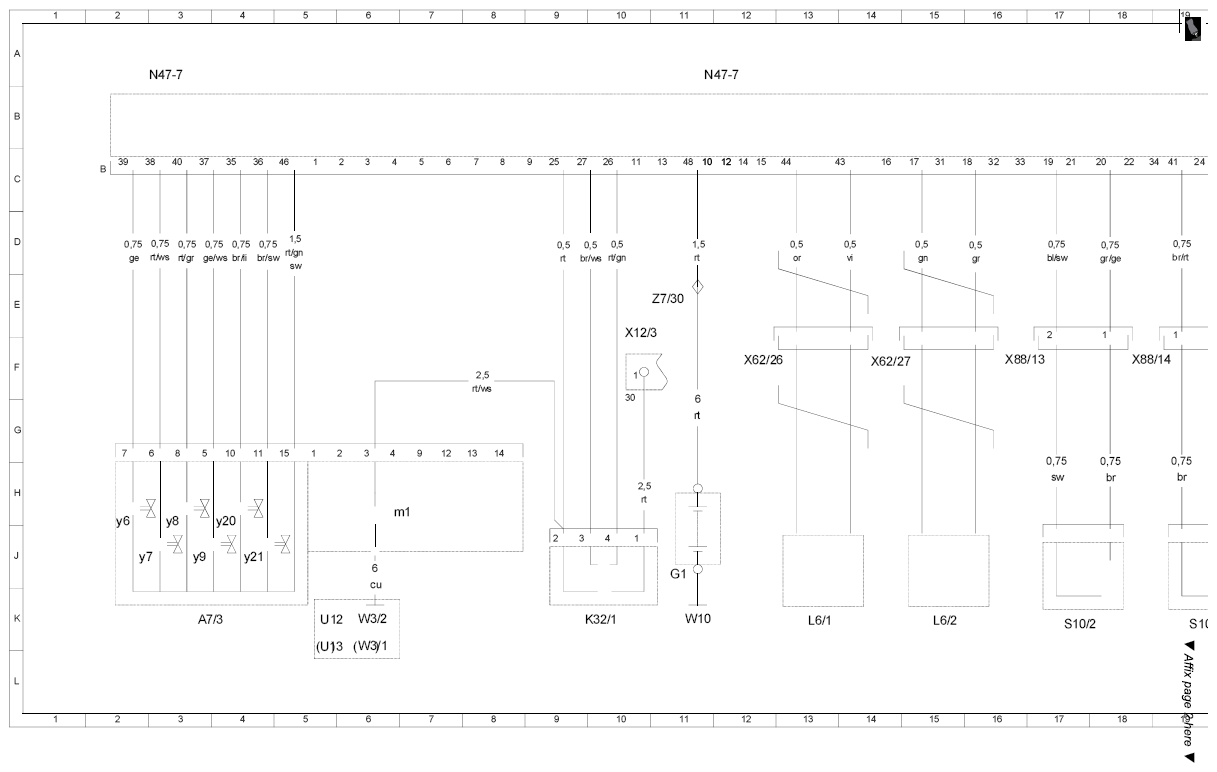

| A7/3 |
Traction system hydraulic unit |
3K |
| A7/3m1 |
High pressure and return pump |
6H |
| A7/3y20 |
Rear axle solenoid valve (pressure hold) |
4J |
| A7/3y21 |
Rear axle solenoid valve (pressure release) |
4J |
| A7/3y6 |
Left front solenoid valve (pressure hold) |
2J |
| A7/3y7 |
Left front solenoid valve (pressure release) |
2J |
| A7/3y8 |
Right front solenoid valve (pressure hold) |
3J |
| A7/3y9 |
Right front solenoid valve (pressure release) |
3J |

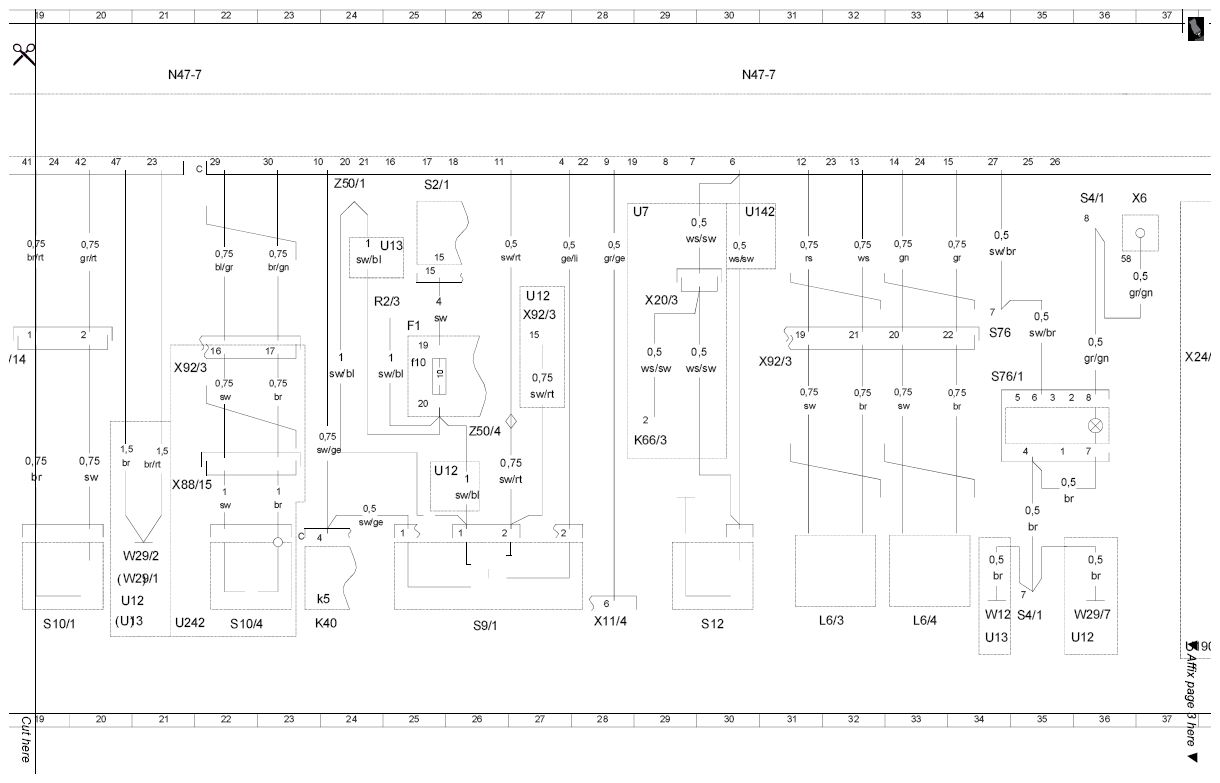

| F1 |
Fuse box |
25F |
| F1f10 |
Fuse 10 |
25F |
| G1 |
Battery |
11J |
| K32/1 |
ABS return pump relay |
9K |
| K40 |
Relay module |
23K |
| K40k5 |
Differential locks relay |
23K |
| K66/3 |
Electric soft top parking brake recognition relay |
28G |
| L6/1 |
Left front rpm sensor |
13K |
| L6/2 |
Right front rpm sensor |
15K |
| L6/3 |
Left rear rpm sensor |
31K |
| L6/4 |
right rear rpm sensor |
33K |
| N47-7 |
ABS control unit |
2B |
| N47-7 |
ABS control unit |
11B |
| N47-7 |
ABS control unit |
21B |
| N47-7 |
ABS control unit |
30B |
| N47-7 |
ABS control unit |
41B |
| R2/3 |
Right washer nozzle heater |
24E |
| S10/1 |
Left front brake pad contact sensor |
19K |
| S10/2 |
Right front brake pad contact sensor |
17K |
| S10/4 |
Right rear brake pad contact sensor |
22K |
| S12 |
Parking brake indicator switch |
30K |
| S2/1 |
Ignition/starter switch |
25C |
| S4/1 |
HCS [SRA] switch |
35K |
| S4/1 |
HCS [SRA] switch |
36C |
| S76 |
Differential lock switch group |
34F |
| S76/1 |
ABS switch (on/off) |
34 F |
| S9/1 |
Stop lamp switch |
26K |
| U12 |
Valid for left-hand drive vehicles |
5K |
| U12 |
Valid for left-hand drive vehicles |
20K |
| U12 |
Valid for left-hand drive vehicles |
25H |
| U12 |
Valid for left-hand drive vehicles |
27E |
| U12 |
Valid for left-hand drive vehicles |
35K |
| U13 |
Valid for right-hand drive vehicles |
5L |
| U13 |
Valid for right-hand drive vehicles |
20K |
| U13 |
Valid for right-hand drive vehicles |
24D |
| U13 |
Valid for right-hand drive vehicles |
34K |
| U142 |
Not valid for convertible |
30D |
| U190 |
Valid for APS |
37L |
| U242 |
Valid for disk brakes |
21K |
| U534 |
Valid for radio |
40L |
| U7 |
Valid for convertibles |
28D |
| W10 |
Ground (battery) |
11K |
| W12 |
Ground (center console) |
34K |
| W29/1 |
Ground (left A-pillar) |
20K |
| W29/2 |
Ground (right A-pillar) |
20J |
| W29/7 |
Ground (steering column) |
36K |
| W3/1 |
Ground (right front wheelhouse) |
6L |
| W3/2 |
Ground (left front wheelhouse) |
6K |
| X11/4 |
Data link connector |
28K |
| X12/3 |
Circuit 30, 15, 61 terminal block (3-pin) |
10F |
| X20/3 |
ASR/master brake cylinder connector (4-pin) |
29E |
| X24/5 |
APS/MWH [HLS] connector |
37F |
| X6 |
Circuit 58 terminal block (2-pin) |
36C |
| X62/26 |
Left front ABS rpm sensor connector |
12F |
| X62/27 |
Right front ABS rpm sensor connector |
14F |
| X88/13 |
Right front brake pad contact sensor connector |
16F |
| X88/14 |
Left front brake pad wear indicator contact sensor connector |
18F |
| X88/15 |
Right rear brake pad contact sensor connector |
21H |
| X92/3 |
Frame connector (22-pin) |
21F |
| X92/3 |
Frame connector (22-pin) |
27E |
| X92/3 |
Frame connector (22-pin) |
30F |
| Z50/1 |
Connector sleeve 1 |
24C |
| Z50/4 |
Connector sleeve 4 |
26G |
| Z51/10 |
CAN (low) 2 connector sleeve |
41E |
| Z51/7 |
CAN (high) 1 connector sleeve |
42G |
| Z51/8 |
CAN (low) 1 connector sleeve |
41G |
| Z51/9 |
CAN (high) 2 connector sleeve |
42E |
| Z7/30 |
Circuit 30 connector sleeve (unfused) |
11E |
