Remove/install rear-end door trim - AR72.20-P-6615G

MODEL 463.220/221/222/224/225/227/228/230/231/232/233/240/241/243/244/245/246/247/248/249/270/271/320/321/322/323/324/325/327/328/330/331/332/333/336/340/341 Single-wing rear-end door with window

MODEL 463.236/237/346 up to model year 2013 single-wing rear-end door with window,/model refinement package 2012

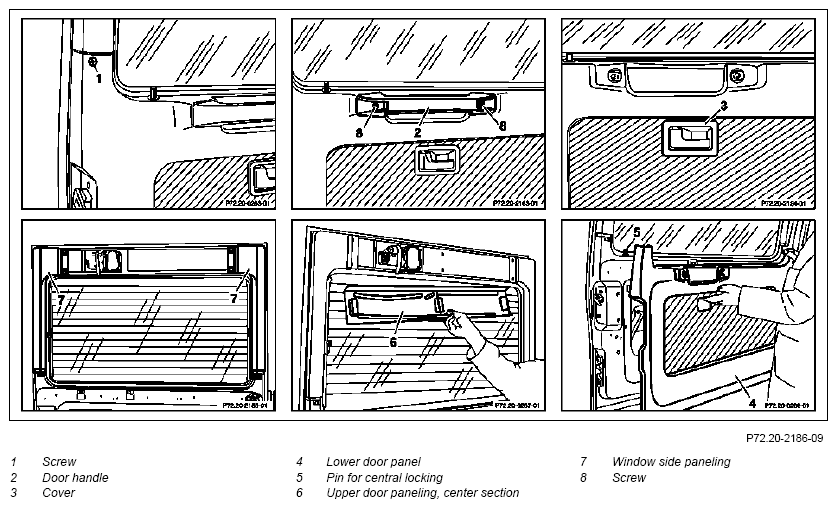

Fig 1: Identifying Rear-End Door Trim Components

Courtesy of MERCEDES-BENZ USA

Shown on model 463.248

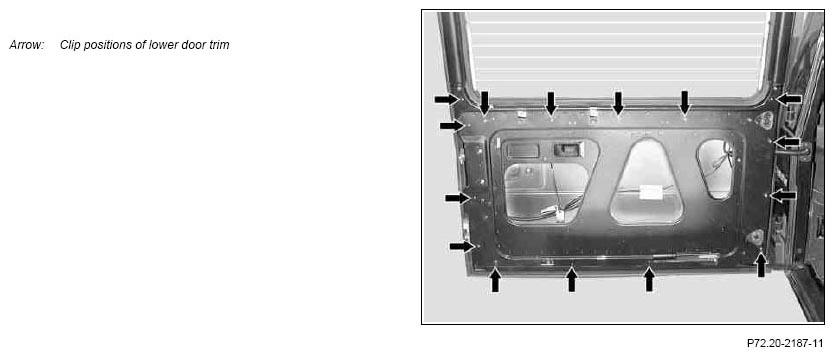

Fig 2: Identifying Clip Positions Of Lower Door Trim

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove bolt (1) of lower door trim (4) at top on left and right	Only on model 463.220/221/222/224/225/227/228/230/231/232/233/236/237/240/241/320/321/324/325/327/328/330/331
2	Remove screws (8) from door handle (2)	Remove screw covers beforehand.
3	Remove cover (3) on door opener	Press door lining gently in the door lock direction and cover (3) on door opener.
4	Remove lower door trim (4)	Position assembly wedge directly on the clip positions of the lower door trim (arrows). Installation:  Check clips, replace if necessary.	Figure
5	Remove upper door trim center piece (6)		Figure
6	Remove window side panel (7) on left and right
7	Check door foil on inner door panel	Replace damaged foil. When replacing the film cut out the attachment area and bond overlapping, otherwise moisture can ingress into the interior.
8	Install in the reverse order

Special tools

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
