Remove/install paneling on upper wind deflector - AR68.30-P-4250GR

MODEL 463.202 /250 /254 /303 /306 /309 Convertible

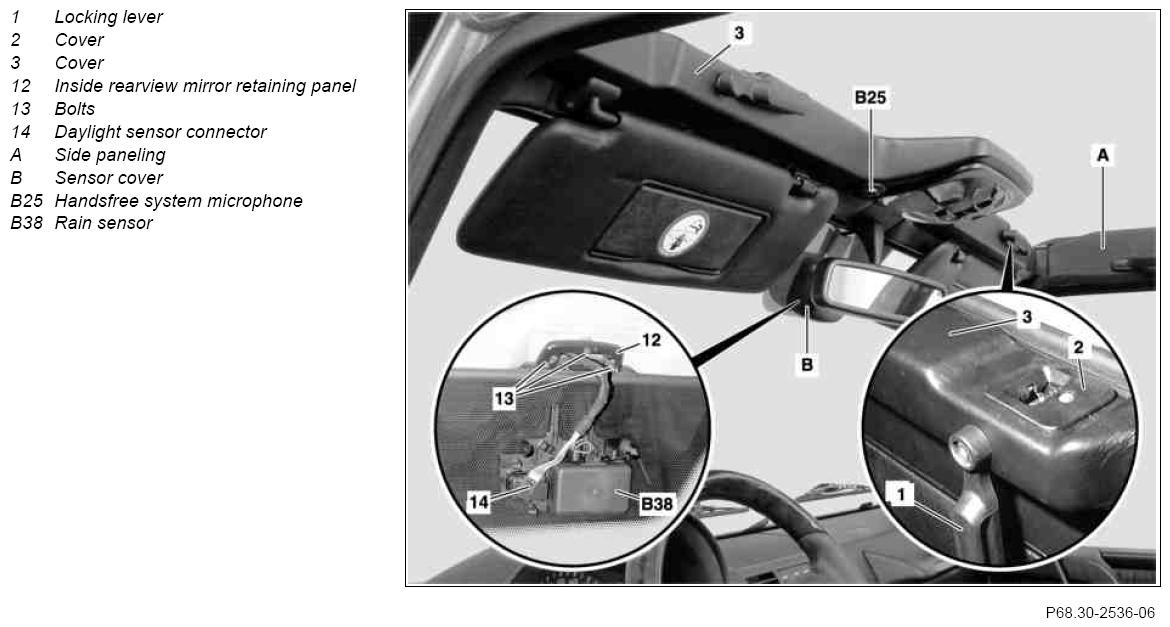

Fig 1: Identifying Upper Wind Deflector Paneling Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Open soft top	See Operator's Manual
2	Remove side handle		AR68.30-P-4301-01G
3	Remove side paneling (A)	Remove only on one side. Carefully remove upper rubber seal in area of paneling. Installation:  Glue on rubber seal at top.	*BR00.45-Z-1003-02A
4	Remove door rubber seal	Remove only in area of side paneling (A).
5	Remove overhead control panel control unit		AR82.20-P-1000GM
6	Remove inside rearview mirror		AR68.40-P-0001GM
7	Remove sensor cover (B)
8	Disconnect daylight sensor connector (14)
9	Disconnect connector from rain sensor (B38)
10	Remove inside rearview mirror retaining plate (12)	Unscrew bolts (13).
11	Remove sun visor	Hydraulic soft top	AR68.60-P-5480G
12	Pry out hands-free system microphone (B25)	Risk of breaking barbs when not removed carefully. With code EL1 Voice control for telephone (Linguatronik) -German Code EL2 Voice control for telephone (Linguatronik) -English Code EL3 Voice control for telephone (Linguatronik) -French Code EL4 Voice control for telephone (Linguatronik) - Italian Code EL5 Voice control for telephone (Linguatronik) - Spanish Code EL6 Voice control for telephone (Linguatronik) - Swiss German Code ET7 Hands-free system including microphone and Nokia 6210 cell phone, Code EV7 Hands-free system including microphone and holder for Nokia 3110 cell phone Installation:  Lug should be in groove in paneling.
			Figure
13	Disconnect connector from hands-free system microphone connector (B25)	With code EL1 Voice control for telephone (Linguatronik) -German Code EL2 Voice control for telephone (Linguatronik) -English Code EL3 Voice control for telephone (Linguatronik) -French Code EL4 Voice control for telephone (Linguatronik) - Italian Code EL5 Voice control for telephone (Linguatronik) - Spanish Code EL6 Voice control for telephone (Linguatronik) - Swiss German Code ET7 Hands-free system including microphone and Nokia 6210 cell phone, Code EV7 Hands-free system including microphone and holder for Nokia 3110 cell phone
14	Remove locking lever (1)	Position locking lever (1) vertically, unclip cap and unscrew locking lever (1).
15	Remove upper cover (2) from paneling (3)
16	Remove paneling (3) from wind deflector
17	Remove paneling (3)	Observe cable connector at each corresponding passage.
18	Install in the reverse order
19	Carry out function check

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1003-02A	Adhesive/Dekalin 3649	A 000 989 82 71
