Remove/install cover below instrument panel (left) - AR68.10-P-1500GM
MODEL 463.202 /222 /236 /237 /243 /244 /245 /246 /247 /248 /249 /250 /254 /270 /271 /303 /306 /309 /322 /323 /332 /333/336 /340 /341 /346
| Remove/install | |||
| 1 | Activate service mode in Telematic Alarm Identification on Demand (emergency call system) (TELE AID) | Model 463.243 /244 /245 /250 /309 /322/ 323 /332 /333 with code (ET2) TELE AID car telephone emergency call system, Model 463.247 /248 /254 /270 up to production period 1.4.07 with code (ET2) TELE AID car telephone emergency call system |
AR82.95-P-0005-03GR |
| Notes regarding the Tele-Aid emergency call system | AH82.95-P-0001-01GA | ||
| Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and goggles. Only pour battery acid into suitable and appropriately marked containers. |
AS54.10-Z-0001-01A | |
| 2.1 | Disconnect battery ground line | Except model 463.306/ 336/ 346 | |
| Except model 463.236 /248 with code (979) Special protection version | AR54.10-P-0003G | ||
| Model 463.236 /248 with Code (979) Special protection version Code (ZS6) Special protection version FB6, Code (ZS7) Special protection version FB7, Code (E26) Additional battery 100 Ah incl. cutoff relay |
AR54.10-P-0003PM | ||
| Notes on battery | AH54.10-P-0001-01A | ||
| 2.2 | Turn key in ignition lock to position "0" | Model 463.306/ 336/ 346 | |

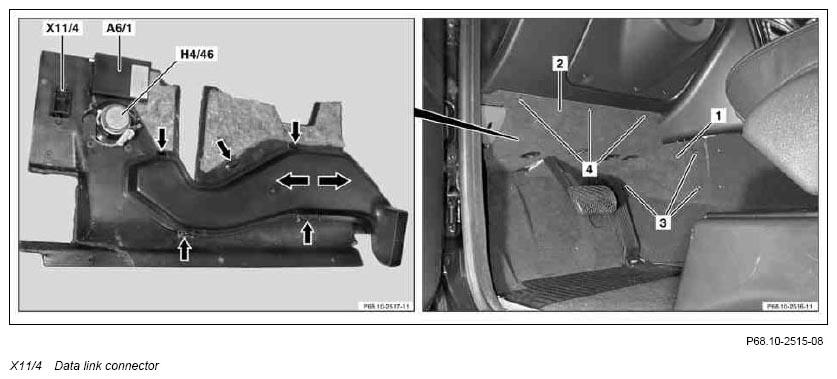

| 3 | Remove bolts (3) | ||
| 4 | Remove front tunnel paneling (1) | ||
| 5 | Remove bolts (4) | ||
| 6 | Pull cover below dashboard (2) downward | ||
| 7 | Release data link connector (X11/4) and disconnect | ||
| 8 | Disconnect connectors from STH radio remote control receiver (A6/1) | Vehicles with code (H12) Auxiliary heater | |
| 9 | Disconnect connector from left front emergency call speaker (H4/46) | Vehicles with code (ET2) TELE AID car telephone emergency call system | |
| 10 | Disconnect electrical connector from ambiance illumination | Vehicles with code (FR1) Ambiance illumination | |
| 11 | Remove cover below dashboard (2) downward at an angle | ||
| 12 | Install in the reverse order | ||
| 13 | Deactivate service mode in TELE AID emergency call system | Model 463.243 /244 /245 /250 /309 /322 /323 /332 /333 with code (ET2) TELE AID car telephone emergency call system, Model 463.247 /248 /254 /270 up to production period 1.4.07 with code (ET2) TELE AID car telephone emergency call system |
AR82.95-P-0005-03GR |
| Notes regarding the Tele-Aid emergency call system | AH82.95-P-0001-01GA | ||
| 14 | Read out and erase the fault memory using Star Diagnosis | AD00.00-P-2000-04A |
