Remove/install ventilation for rear interior compartment - AR83.65-P-1000GL

MODEL 461.332 /333 /334 /340 /342 /344

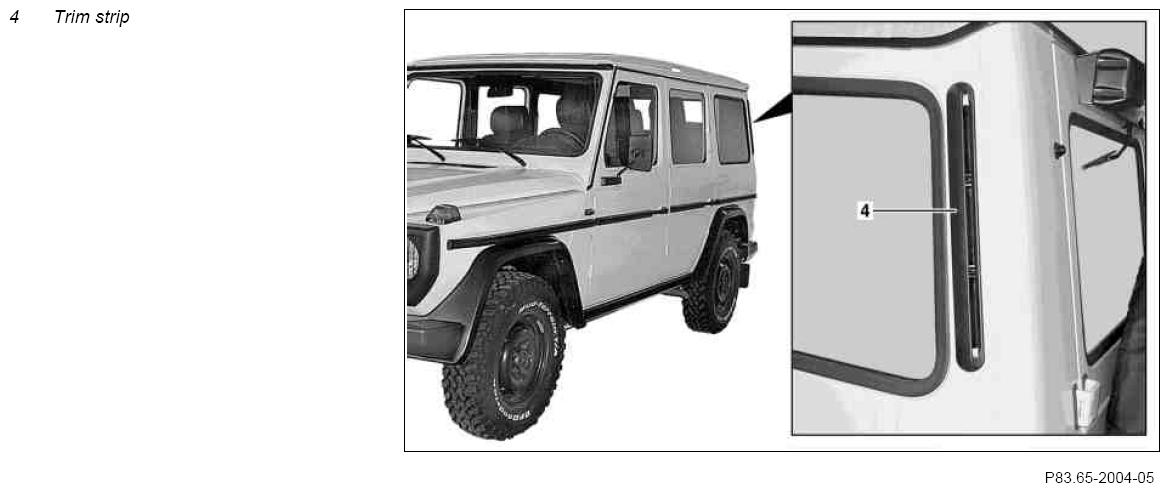

Fig 1: Identifying Trim Strip

Courtesy of MERCEDES-BENZ USA

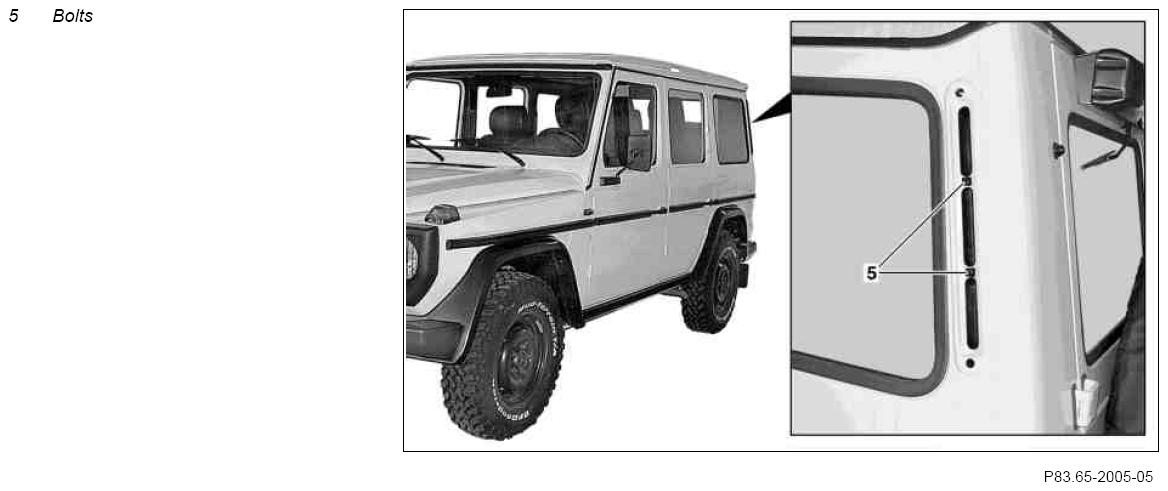

Fig 2: Identifying Bolts

Courtesy of MERCEDES-BENZ USA

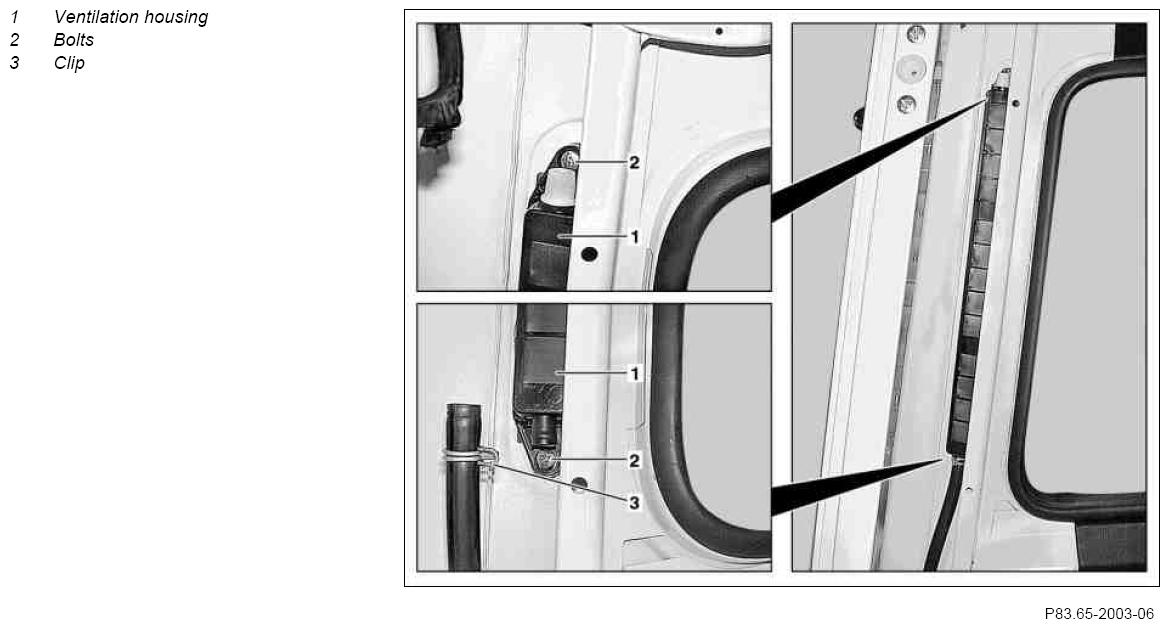

Fig 3: Identifying Ventilation Housing, Bolts & Clip

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove trim from rear pillar	Only model 461.332/333/334	AR68.30-P-4505GL
2	Loosen clamp (3) and pull off drain hose
3	Remove trim strip (4)	Remove bolts (2), secure trim strip (4) from falling.
4	Remove ventilation housing (1)	Remove bolts (5), check seal and replace if necessary.
5	Install in the reverse order
