Remove/install transmitter/receiver - AR82.70-P-8911GR
MODEL 463.243 /244 /245 /246, 463.247 /248 up to 1.4.07, 463.249 up to 30.8.06, 463.250, 463.254 /270 /271 up to 1.4.07, 463.309 /322 /323 /332 /333 with CODE (ET7) Hands-free system including microphone and Nokia 6210 portable CTEL with CODE (EV7) Hands-free system including microphone and holder for Nokia 3110 portable CTEL
MODEL 463.303 /340 /341 up to 1.4.07 with CODE (EV8) Mobile phone preinstallation
| Remove/install | |||
|---|---|---|---|
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. | AS00.00-Z-0017-01A | |
| 1 | Activate Service mode in Tele-Aid emergency call system | AR82.95-P-0005-03GR | |
| Notes regarding the Tele-Aid emergency call system | AH82.95-P-0001-01GA | ||
| Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| 2 | Disconnect battery ground line | All models except model 463.248 with code 979 Special protection version | AR54.10-P-0003G |
| Model 463.248 with: code 979 Special protection version code ZS6 Special protection version FB6 code ZS7 Special protection version FB7 code E26 Additional battery 100 Ah including cutoff relay |
AR54.10-P-0003PM | ||
| Notes on battery | All models | AH54.10-P-0001-01A | |
| 3 | Remove center console | Model 463.243/244/245/247/248/250/ 254/270/271/303/309/322/323/332/333/ 340/341 | AR68.20-P-2000GA |
| Model 463.246/249 | AR68.20-P-2000US | ||

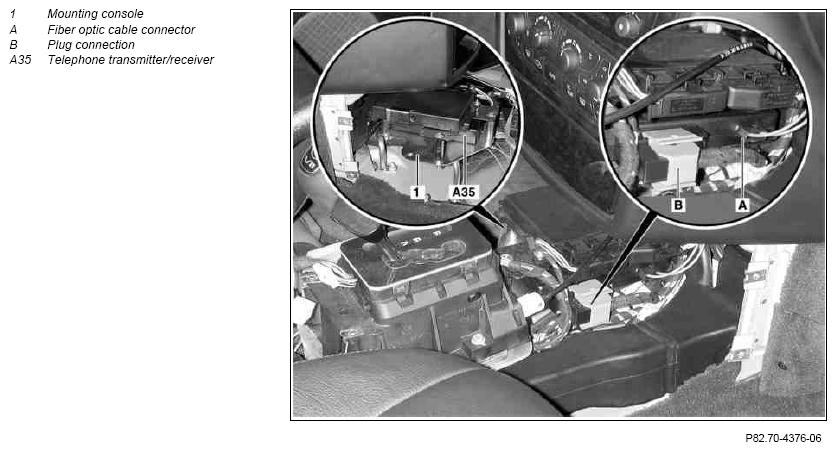

| 4 | Disconnect fiber optic cable connector (A) at telephone transmitter/receiver (A35) | ||
| 5 | Cover fiber optic cable | AR82.95-P-0005-01A | |
| Notes on fiber optic cable | AH82.70-P-0001-02A | ||
| 6 | Disconnect connector (B) at telephone transmitter/receiver (A35) | ||
| 7 | Detach mounting console (1) of center tunnel | ||
| 8 | Remove telephone transmitter/receiver (A35) | ||
| 9 | Install in the reverse order | ||
| 10 | Deactivate service mode in TELE AID emergency call system | AR82.95-P-0005-03GR | |
| Notes regarding the Tele-Aid emergency call system | AH82.95-P-0001-01GA | ||
| 11 | Read out fault memory and erase | Stored faults which can result from cables being disconnected or from simulation during removal and installation or test work, have to be processed and erased in the fault memories after completing the work. |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
