Remove/install rear door lining - AR72.12-P-1010GN

MODEL 463.243/245/246/249/270/271/323/333/341

MODEL 463.248 except CODE (979) Special protection version

MODEL 463.237/346 up to model year 2013/model refinement package 2012

MODEL 463.236 except CODE (979) Special protection version up to model year 2013/facelift 2012

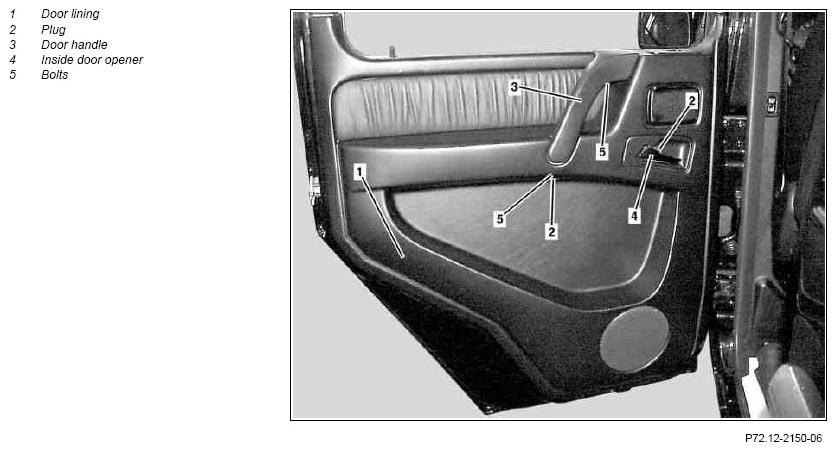

Fig 1: Identifying Rear Door Lining Components (1 Of 3)

Courtesy of MERCEDES-BENZ USA

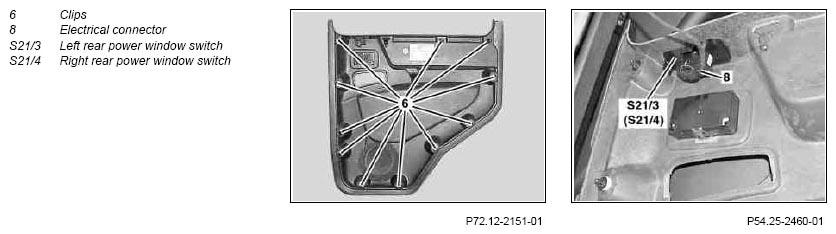

Fig 2: Identifying Rear Door Lining Components (2 Of 3)

Courtesy of MERCEDES-BENZ USA

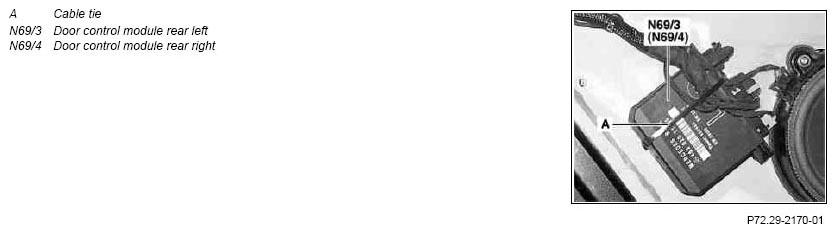

Fig 3: Identifying Rear Door Lining Components (3 Of 3)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove plug (2) from door handle (3) and inside door opener (4)
2	Remove screws (5) from door handle (3)
3	Remove inner door actuation (4) from rear door	Only with wheelbase 2850 mm	AR72.12-P-2310GN
4	Press door lining (1) off of door skin in area of clips (6)	Check clips (6) for damage, replace if necessary.	Figure
5	Unplug electrical connector (8)	On left rear power window switch (S21/3) and right rear power window switch (S21/4)
6	Disconnect electrical connector from ambiance illumination	Only on vehicles with code (FR1) Ambiance illumination
7	Remove door lining (1)	Installation:  Fasten lines to left rear door control unit (N69/3) or lines to right rear door control unit (N69/4) with cable tie (A). Do not cross lines, otherwise door lining (1) is hard to install.
8	Check foil on door skin	Check door foil, replace if necessary, otherwise moisture can penetrate into the passenger compartment.
9	Install in the reverse order

Fig 4: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
