Remove/install ashtray housing in front center console - AR68.20-P-2400GM

MODEL 463.202 /222 /236 /237 /243 /244 /245 /246 /247 /248 /249 /250 /254 /270 /271 /303 /306 /309 /322 /323 /332 /333/336 /340 /341 /346

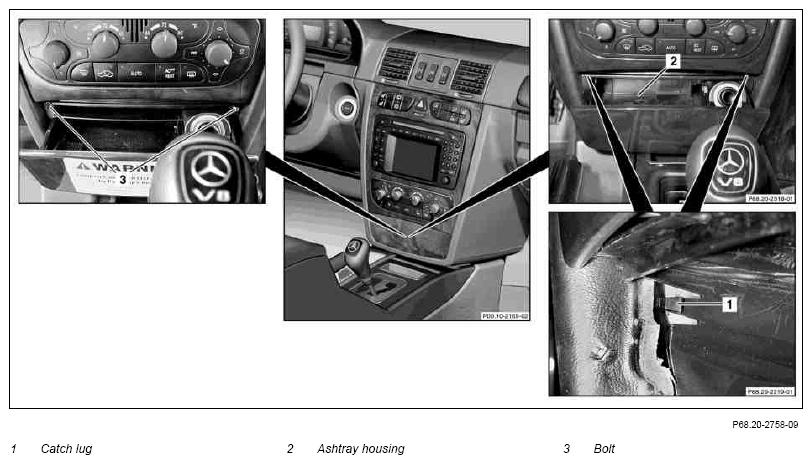

Fig 1: Identifying Catch Lug, Ashtray Housing And Bolts

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Set selector lever to position "D"
2	Remove front ashtray	See Operator's Manual
3.1	Unlock catch lugs (1)	Model 463 up to 30.6.02 For this purpose, install suitable tool between ashtray housing (2) and center instrument panel cover on right and left.
3.2	Remove bolts (3)	Model 463 as of 1.7.02
4	Remove ashtray housing (2)
5	Disconnect electrical connector from ashtray illumination
6	Install in the reverse order
